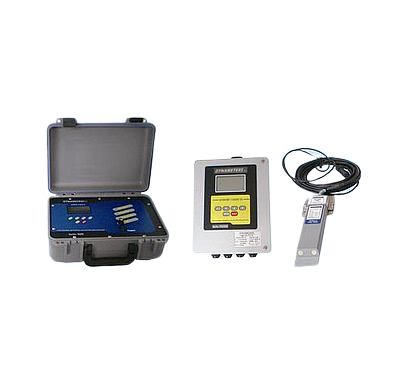

Dynaflox DMDF-OP-B Partially Filled Pipe Flow Meters

Pipe sizes: : DN300~2000
Flow Calculator
Enclosure: NEMA4x IP65, cast aluminum
Dimension: 260L x 193 W x 80 H mm
Power supply: 110~240 VAC or 12~28 VDC
Output: 4-20mA
Temp.: -40 + 70 C
Dynameters velocity and level transducer
Enclosure: 290L x 70 W x 25 H mm
Material: PVC body, stainless steel mounting plate
Accuracy: velocity: 2% of measured, level: +-0.25% of calibrated lower range
Measuring range: Velocity: 0.021 m/s to 4.5 m/s bidirectional. Level: 0~2m, 0~5m
Temp.: 0~60 C
Power supply: external 12 VDC battery, Voltage: 11.5V ~15 VDC

Selection table
