Dynaflox DMDF-OP-A Partially Filled Pipe Flow Meters

Accuracy: 0.5%~2.0 % F.S
Pipe sizes: : DN100~3000
Flow Calculator
Enclosure: NEMA4x IP65, cast aluminum
Dimension: 260L x 193 W x 80 H mm
Power supply: Std: 110~240 VAC. opt: 12~28 VDC
Output: 4-20mA
Temp.: -40 + 70 C

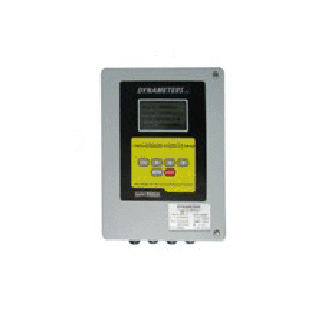

Transmitter
Enclosure: NEMA4 x [IP65], cast aluminum
Dimension: 260L x 193 W x 80 H mm
Power supply: Std: 110~240 VAC. opt: 12~28 VDC
Output: 4-20mA
Temp.: -40 + 70 C

Velocity Transducer
Measuring range: 0.05 m/s ~ 12m/s
Type: Insertion and clamp-on
Liquid temp.: Std: -40+121C. Opt: -40+250 C -40~150 for insertion )
Cable length: std : 6m . Opt: 300m
Housing material:
Std: Aluminum
High temp: Engineering plastic
Stainless steel : Stainless steel
Insertion : Stainless steel
Protection class: Std: IP65. Opt: IP68

Level transducer
Measuring range: 0.15~5.4 m
Temp.: -40 ~60 C
Power supply: 12-36 VDC
Outputs: 4-20mA
Housing material: Engineering plastic

Selection table
