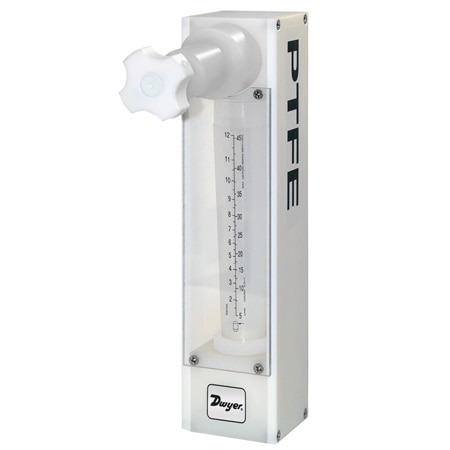

Dwyer TVA24012 Fluoropolymer Flowmeters for High Purity & Corrosive Liquids, 0-10 Scale (3/4 in, NPT Female)

Accuracy: ± 5 %

Valve Type: No Valve

Scale Length: 125 mm

Accuracy Note: ± 5% FS @ 70°F (21.1°C) and 14.7 psia (1 atm absolute)

Gas Flow, Max: 0 m³/s

Pressure Type: Gauge

Repeatability: ± 0.25%

Proof Pressure: Up to 100 psi

Turndown Ratio: 10:1

Liquid Flow, Max: 7.93 GPM

Materials, Wetted: PCTFE (Polychlorotrifluoroethylene), Polyurethane

Media Compatibility: Water

Mounting Orientation: Vertical

Additional Features 1: High Range Without Valve

Leak Rate Under Vacuum: less than 10^⁻⁷ cc He/s

Process Connection Size: 3/4 in

Process Connection Type: NPT Female

Operating Temperature, Max: 250 °F

Material Construction Option: N/A
