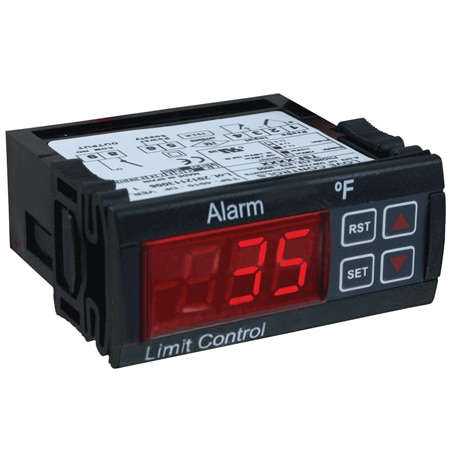

Dwyer TSF-4030 Thermocouple Limit Control with Alarm & Relay for Gas Ovens/Burners (Thermocouple, ± 1 %, LED, J: 32 to 999 °F; K: 32 to 999 °F ; S: 32 to 999 °F)

Weight: 2.3 oz

Accuracy: ± 1 %

Compliance: CE, cURus, FM

Resolution: 1°F

Switch Note: SPDT relay rated 16 A @ 240 VAC resistive

Switch Type: SPDT NO/NC, Selectable

Display Note: 3-digit, red, 1/2˝ (12.7 mm) digits, plus sign.

Display Type: LED

Control Input: On off manual Auto

Memory Backup: Non-Volatile

Switch Rating: 16 A @ 240 Vac

Control Output: Relay

Supply Voltage: 12 Vac/Vdc

Number of Digits: 3

Enclosure Ratings: IP64, NEMA Type 3R

Horsepower Rating: 1 hp

Power Consumption: 4 VA

Supply Power Type: AC/DC

Thermocouple Type: J, K, S

Temperature Sensor Type: Thermocouple

Storage Temperature, Max: 176 °F

Storage Temperature, Min: -4 °F

Operating Temperature, Max: 150 °F

Operating Temperature, Min: 32 °F

Temperature Measurement Range: J: 32 to 999 °F; K: 32 to 999 °F ; S: 32 to 999 °F
