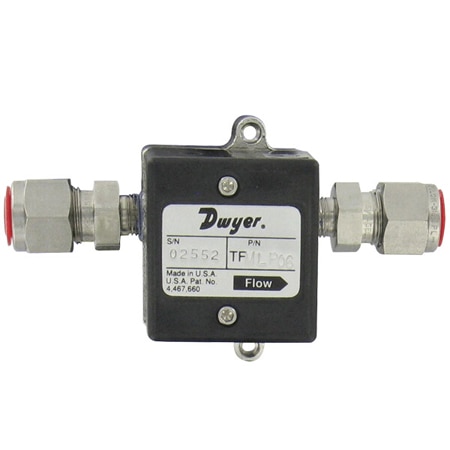

Dwyer TFM-LP07 Turbine Flowmeter, Electro-Optical Detection, 0-5 Vdc Output (32 gal/h)

Length: 3.8281 in

Weight: 0.86 lb

Accuracy: ± 1 %

Linearity: ± 1%

Compliance: CE

Port 1 Size: 1/4 in

Port 1 Type: Compression Fitting

Port 2 Size: 1/4 in

Port 2 Type: Compression Fitting

Sensitivity: ± 0.2% FS/°C

Output Detail: 0 to 5 VDC: Minimum 2.5 kΩ Load; Pulse: 7.5 VDC Peak Buffered Square Wave

Output Signal: Voltage, DC Pulse

Pressure Type: Gauge

Repeatability: ± 0.2%

Supply Voltage: 11.5 to 15 Vdc

Pressure Limits: Up to 500 psi

Enclosure Ratings: IP10, NEMA Type 1

Materials, Wetted: 316 Stainless Steel, Acetal, Epoxy, Fluoroelastomer, Glass, Sapphire

Power Consumption: 35 mA @ 12 Vdc

Supply Power Type: DC

Media Compatibility: Alcohols, Compatible Liquids, Oils, Water

Electrical Connection: Four-Pin

Storage Temperature, Max: 158 °F

Storage Temperature, Min: 32 °F

Volumetric Flow Rate, Max: 32 gal/h

Volumetric Flow Rate, Min: 3.2 gal/h

Operating Temperature, Max: 131 °F

Operating Temperature, Min: 41 °F
