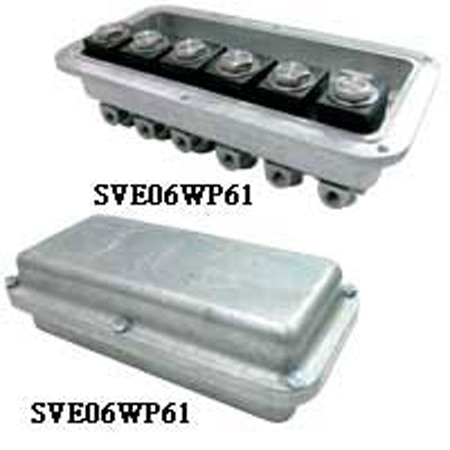

Dwyer SVE06WP61 Weatherproof Solenoid Valve Enclosures for RSV, 6/12 Valve, Customizable (1/8 in, NPT Female)

Materials: Aluminum, NBR

Enclosure Type: Weatherproof

Supply Voltage: 110 Vac

Pressure Limits: 4.4 to 124.7 psi

Enclosure Ratings: IP66, NEMA Type 4X

Materials, Wetted: Aluminum, Buna-N (NBR), Stainless Steel

Power Consumption: 12 W, inrush: 17 VA, holding: 14.5 VA

Supply Power Type: AC

Conduit Connection: 3/4 in NPT Female

Media Compatibility: Argon, Compatible Gases, Nitrogen

Number of Solenoids: 6

Mounting Orientation: Not Position Sensitive

Electrical Connection: Screw Terminal

Pneumatic Tube Length: 9.8' max

Process Connection Size: 1/8 in

Process Connection Type: NPT Female

Process Temperature, Max: 185 °F

Process Temperature, Min: -4 °F

Operating Temperature, Max: 122 °F

Operating Temperature, Min: -4 °F
