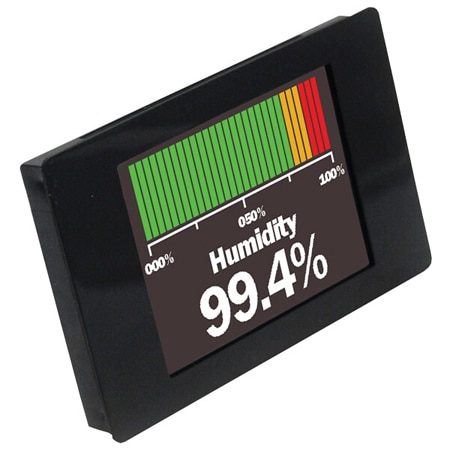

Dwyer SPPM-28-C Smart Programmable Panel Meter with Color Touch-Screen for Monitoring (4 to 30 Vdc)

Weight: 2.8 oz

Accuracy: ± 0.1 %

Mounting: Panel Mount

Software: Compatible with Windows® 7, Windows® 8 and Windows® 10

Compliance: CE

Input Note: Current: 0-50 mA, scalable (factory set from 4-20 mA)

Input Type: Current

Display Type: Color LCD Touchscreen

Warm Up Time: 30 s

Sampling Rate: 3 Hz (3 updates/second)

Supply Voltage: 4 to 30 Vdc

Power Consumption: 190 mA max

Supply Power Note: 4-30 VDC max or via USB

Supply Power Type: DC

Display Resolution: 320 x 240 pixels

Current Input Range: 0 to 50 mA

Electrical Connection: Screw Terminal, multiple DIL IDC sockets, USB mini-B

Display Segment Height: 71 mm (2.8 in)

Operating Temperature, Max: 104 °F

Operating Temperature, Min: 32 °F
