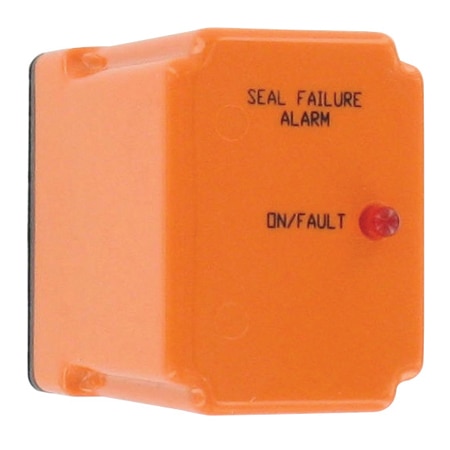

Dwyer SLD-ACX Single Channel Leak Detection Relay for Pumps - Monitors Seals, Alarms

Weight: 8 oz

Mounting: 11-pin socket

Isolation: 2500 V

Materials: Polycarbonate

Compliance: cUR, UR

Input Type: Resistance

Sensitivity: 470 Ω Fixed

Switch Note: 10 A @ 250 VAC resistive, 360 VA inductive

Switch Type: DPDT

Control Mode: On/Off

Response Time: Energize: 15 ms, Release: 8 ms

Switch Rating: 10 A @ 250 Vac, 360 VA

LED Indicators: Red LED Illuminates when Leak is Detected

Supply Voltage: 120 Vac

Power Consumption: 2 VA

Supply Power Type: AC

Switch Activation: Falling

Switching Voltage: 9 Vdc

Control Sensitivity: 470 Ω Fixed

Storage Temperature, Max: 185 °F

Storage Temperature, Min: -40 °F

Operating Temperature, Max: 131 °F

Operating Temperature, Min: -4 °F
