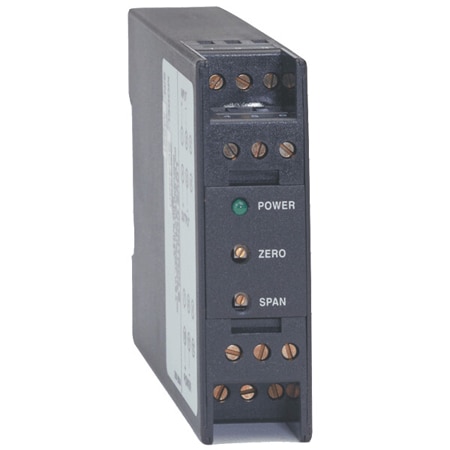

Dwyer SC4380 RTD & Thermocouple Signal Conditioners, Isolated, DIN Rail Compatible (RTD)

Drift: ± 0.02%/°C (typical), ± 0.05%/°C (max)

Width: 0.866 in

Height: 2.95 in

Length: 3.88 in

Mounting: DIN Rail - 35 mm (DIN EN50022-35)

Isolation: 1500 Vac RMS

Linearity: 0.1% of full-scale

Input Type: RTD

Output Load: Current: 600 Ω max ; Voltage: 500 Ω min (20 mA maximum)

Supply Voltage: 85 to 265 Vac/Vdc

supply-voltage: 85 to 265 Vac/Vdc

Supply Power Note: SC: 85 to 265 VDC/VAC 50 to 400 Hz

Supply Power Type: AC/DC

Thermocouple Type: N/A

Input Control Signal: Current: 600 Ω max ; voltage: 500 Ω min (20 mA maximum)

Isolator Input Current Range: 0 to 5 mA, 0 to 10 mA, 0 to 20 mA, 0 to 50 mA, 0 to 100 mA, 1 to 5 mA, 4 to 20 mA, 10 to 15 mA

Isolator Input Voltage Range: 0 to 100 mV, 0 to 200 mV, 0 to 500 mV; 0 to 1 V, 0 to 5 V, 0 to 10 V, 1 to 5 V, 2 to 10 V

Isolator Output Current Range: 0 to 1 mA, 0 to 5 mA, 0 to 20 mA, 1 to 5 mA, 4 to 20 mA

Temperature Measurement Range: N/A
