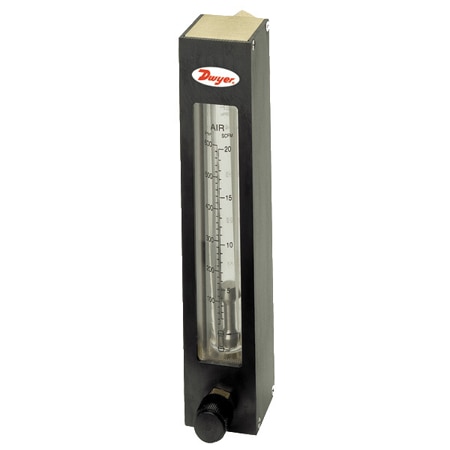

Dwyer RSF112 Rotatable Flowmeters for Air/Water/Gases – Direct Read with Shield (3/8 in, NPT Female)

Accuracy: ± 7 %

Valve Type: N/A

Scale Length: 127 mm

Gas Flow, Max: 10 SCFM

Pressure Type: Gauge

Repeatability: ± 0.25%

Proof Pressure: Up to 150 psi

Turndown Ratio: 10:1

Liquid Flow, Max: 2 GPM

Materials, Wetted: 316 Stainless Steel, Borosilicate, Fluoroelastomer

Media Compatibility: Air, Water

Mounting Orientation: Vertical

Process Connection Note: Two 3/8˝ female NPT

Process Connection Size: 3/8 in

Process Connection Type: NPT Female

Operating Temperature, Max: 250 °F

Material Construction Option: Stainless Steel

material-construction-option: Stainless Steel
