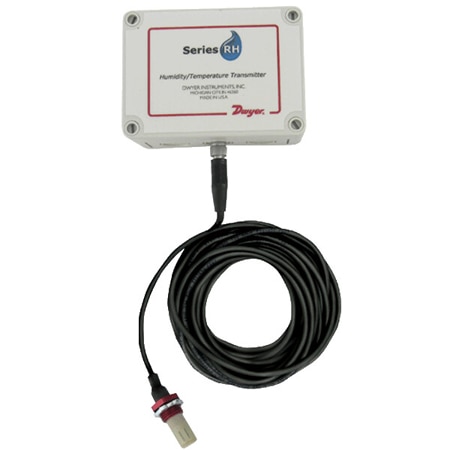

Dwyer RHT-R016 Compact Humidity Transmitter w/ Detachable Filter, 16 ft Range (RH: Capacitive Polymer humidity sensor, Temp: Diode temperature sensor, 140 °F)

Materials: Aluminum, Polycarbonate

Sensor Type: RH: Capacitive Polymer humidity sensor, Temp: Diode temperature sensor

Cable Length: 16 ft

Output Signal: Current

Response Time: <15 s

Supply Voltage: 10 to 35 Vdc

RH Sensor Drift: <1% RH/year

Enclosure Ratings: IP66, NEMA Type 4X

Relative Humidity: 0 to 100% RH

Supply Power Type: DC

Media Compatibility: Clean Dry Air

Current Output Range: 4 to 20 mA

Electrical Connection: 1/2 in NPT female Conduit with Screw Terminal block

Process Connection Size: 1/2 in

Process Connection Type: High Pressure NPSM

Process Temperature, Max: 140 °F

Process Temperature, Min: -4 °F

Storage Temperature, Max: 176 °F

Storage Temperature, Min: -40 °F

Operating Temperature, Max: 140 °F

Operating Temperature, Min: -40 °F

Relative Humidity Accuracy: ± 2% RH

Solid State Band Gap Temperature Input Range: -40 to 140°F
