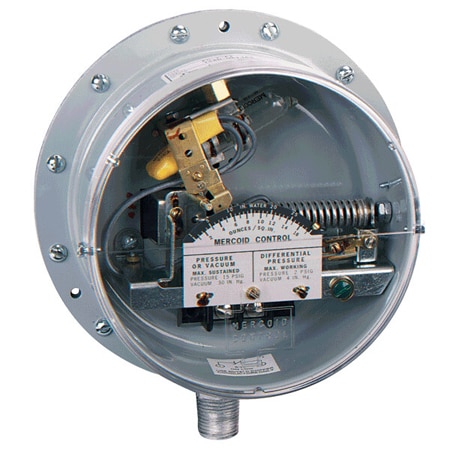

Dwyer PG-7000-153-P2 Gas Pressure Switches for Air/Gases, ± 1% Repeatability, SPST/SPDT Options (Differential, 5 psi, NPT Male and Female, 1/2 in x 1/8 in, None)

Weight: 2 kg

Deadband: 0.5 psi

Compliance: UL

Switch Note: SPDT Snap: 15A @ 120 VAC, 8A @ 240 VAC, 0.5A @ 120 VDC, 0.25A @ 240 VDC

Switch Type: SPDT NO/NC, Selectable

Pressure Type: Differential

Pressure, Max: 5 psi

Pressure, Min: 0.5 psi

Repeatability: ± 1%

Switch Rating: 15 A @ 120 Vac, 8A @ 240 Vac, 0.5A @ 120 Vdc, 0.25A @ 240 Vdc

Proof Pressure: Up to 2 psi

Enclosure Ratings: None

Materials, Wetted: Aluminum, Brass, Buna-N (NBR), Steel

Mounting Orientation: Vertical

Set Point Adjustment: External Screw

Electrical Connection: 1/2 in NPT female Conduit with Screw Terminal block

Process Connection Note: 1/2˝ male NPT and 1/8˝ female NPT used for single positive pressure or high differential pressure, 1/8˝ female NPT used for single vacuum or low differential pressure

Process Connection Size: 1/2 in x 1/8 in

Process Connection Type: NPT Male and Female

Operating Temperature, Max: 180 °F

Operating Temperature, Min: -10 °F
