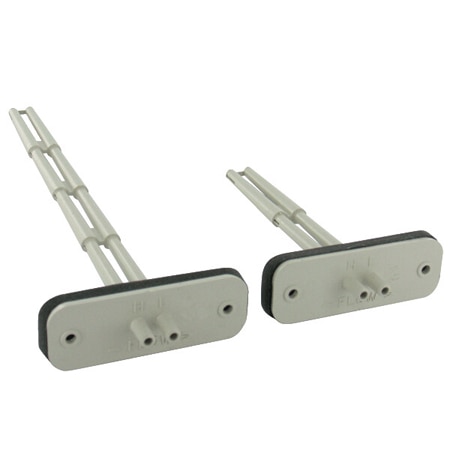

Dwyer PAFS-1004 Averaging Flow Sensors for HVAC – Velocity Pressure Detection in VAV Units (7.6563 in)
ManufacturerDwyer(View more products from this manufacturer)
ModelPAFS-1004
USD 20.82
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Weight: 1 oz
Compliance: RoHS 2
Port 1 Size: 1/4 in
Port 1 Type: Stem
Port 2 Size: 1/4 in
Port 2 Type: Stem
Compliance Note: Meets the technical requirements of EU Directive 2011/65/EU (RoHS II).
Insertion Length: 7.6563 in
Materials, Wetted: ABS, Polycarbonate
Media Compatibility: Air, Argon, Compatible Gases, Nitrogen
Mounting Orientation: Integral Flange with Gasket
Storage Temperature, Max: 140 °F
Storage Temperature, Min: -40 °F
Operating Temperature, Max: 120 °F
Operating Temperature, Min: 40 °F
