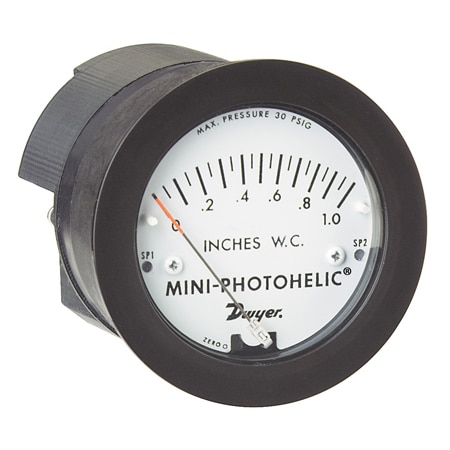

Dwyer MP-002 Mini-Photohelic Differential Pressure Switch/Gage for Non-Corrosive Gases (Differential, 2 inH₂O, Barbed Fitting, 3/16 in)

Weight: 23 oz

Accuracy: ± 5 %

Division: 0

Compliance: CE, cULus

Dial Depth: 4.125 in

Wire Gauge: 22 to 12 AWG

Switch Note: 5 A @ 120/240 VAC resistive; 5 A @ 30 VDC

Switch Type: (2) SPDT

Accuracy Note: ± 5% of FS @ 70°F (21.1°C)

Pressure Type: Differential

Pressure, Max: 2 inH₂O

Pressure, Min: 0 inH₂O

Switch Rating: 5 A @ 120/240 Vac, 5 A @ 30 Vdc

Proof Pressure: Up to 30 psi

Supply Voltage: 24 Vac/Vdc

Materials, Wetted: Consult Factory

Supply Power Note: 24 VDC / 24 VAC 50/60 Hz 4 watts

Supply Power Type: AC/DC

Dial Outer Diameter: 3.0625 in

Media Compatibility: Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases

Mounting Orientation: Vertical

Set Point Adjustment: Push-button

Standard Accessories: (2) Mounting Screws, (1) .050" Hex Allen Wrench

Electrical Connection: Screw Terminal

Process Connection Note: Barbed for 3/16˝ ID tubing (STD); 1/8˝ male NPT (optional)

Process Connection Size: 3/16 in

Process Connection Type: Barbed Fitting

Operating Temperature, Max: 120 °F

Operating Temperature, Min: 20 °F
