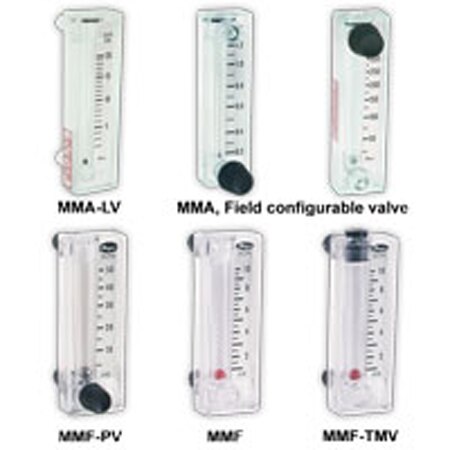

Dwyer MMF-1 Custom Mini-Master® Flowmeters for Gas/Liquid, High Chemical Resistance (1/4 in, Barbed Fitting)

Weight: 0.5 oz

Accuracy: ± 10 %

Compliance: RoHS 2

Valve Type: N/A

Scale Length: 1.5 in

Gas Flow, Max: 1 SCFH

Gas Flow, Min: 0.1 SCFH

Proof Pressure: Up to 50 psi

Compliance Note: Meets the technical requirements of EU Directive 2011/65/EU (RoHS II)

Liquid Flow, Max: 0 m³/s

Materials, Wetted: Black Glass, Nylon, Polyurethane, Stainless Steel, Styrene Acrylonitrile

Media Compatibility: Air, Water

Process Connection Note: 1/4" OD for push on rubber or plastic tubing. Connect to rigid tubing with compression fittings

Process Connection Size: 1/4 in

Process Connection Type: Barbed Fitting

Scale Media Calibration: Air @ 1 atm

Operating Temperature, Max: 125 °F

Material Construction Option: N/A
