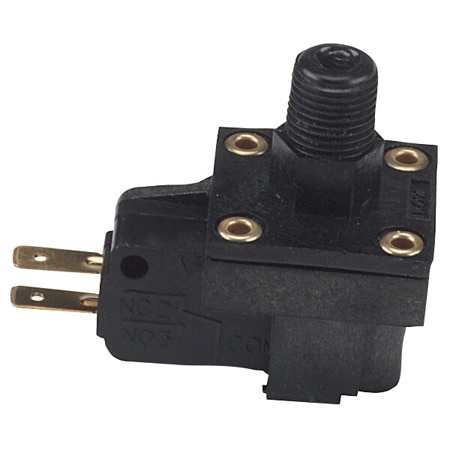

Dwyer MHS-1 Mini High Sensitivity Pressure Switch, Adjustable Set Points, 50 Min Order (Gauge, 10 inH₂O, NPT Male, 1/8 in)

Weight: 0.71 oz

Contacts: Silver with Brass Terminals

Compliance: cUL, UL

Switch Note: SPDT normally open or normally closed, 3 A @ 125/150 Vac

Switch Type: SPDT NO/NC, Selectable

Pressure Type: Gauge

Pressure, Max: 10 inH₂O

Pressure, Min: 3 inH₂O

Repeatability: ± 20%

Switch Rating: 3 A @ 125/150 Vac

Pressure Limits: Up to 10 inH2O

Materials, Wetted: Polyurethane

Media Compatibility: Air, Alkaline solutions, Argon, Carbon dioxide, Dilute Acids, Helium, Nitrogen, Oxygen, Steam, Water, Water-based fluids

Mounting Orientation: Panel Mount

Process Connection Size: 1/8 in

Process Connection Type: NPT Male

Operating Temperature, Max: 150 °F

Operating Temperature, Min: 40 °F
