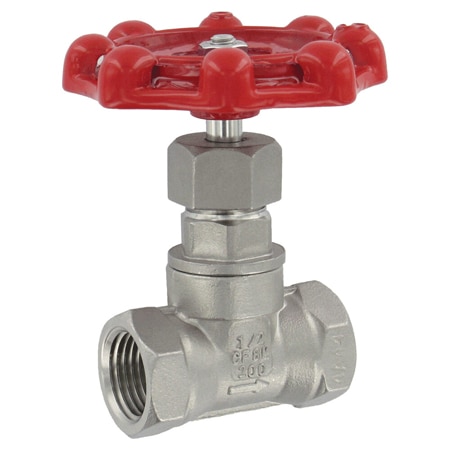

Dwyer HGV02 Hand Operated Globe Valve - CF8M (316) SS, for Flow Control & Shut-off (2.46 gal/min, NPT Female)

Cv Factor: 2.46 gal/min

Materials: 316 Stainless Steel, Aluminum, Cast iron

Port 1 Size: 1/2 in

Port 1 Type: NPT Female

Port 2 Size: 1/2 in

Port 2 Type: NPT Female

Pressure Limits: Up to 725 psi

Materials, Wetted: PTFE, Stainless Steel

Media Compatibility: Alcohols, Argon, Compatible Gases, Compatible Liquids, Nitrogen, Oils, Water

Pressure Limits Note: 725 psi (50.0 bar) from -20 to 200°F (-28.9 to 93.3°C); 500 psi (34.5 bar) at 300°F (148.9°C); 450 psi (31.0 bar) at 325°F (162.8°C); 100 psi (6.9 bar) at 350°F (176.7°C).

Process Temperature, Max: 356 °F

Process Temperature, Min: -20 °F

Datasheet
