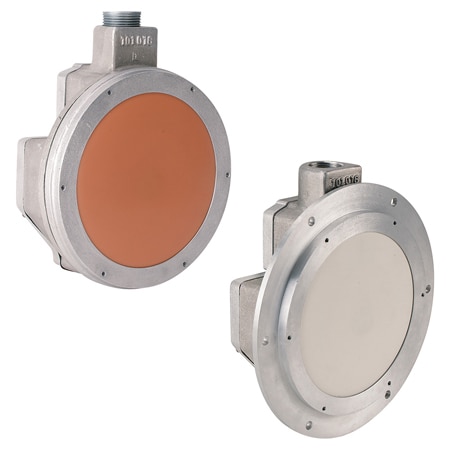

Dwyer GSD3DA Explosion-Proof Level Switches for Bulk Solids – Suspension/Flange Mount

Weight: 7 lb

Mounting: Suspension Mount

Compliance: UL

Wire Gauge: 18 AWG

Switch Type: SPDT NO/NC, Selectable

Pressure Type: Gauge

Switch Rating: 15 A @ 125/250 Vac

Tank Diameter: N/A

Pressure Limits: Up to 60 psi

Sensor Material: Aluminum, Urethane, Stainless Steel

Enclosure Ratings: General purpose

Media Compatibility: Cement Powder, Dry Bulk Solids, Dry Powder, Flour, Grain, Powders, Sand

Set Point Adjustment: Internal Screw

Electrical Connection: 1/2 in NPT female Conduit with Screw Terminal block

Operating Temperature Note: Diaphragm Material Temperature: 10 to 150°F

Operating Temperature, Max: 185 °F

Operating Temperature, Min: -40 °F
