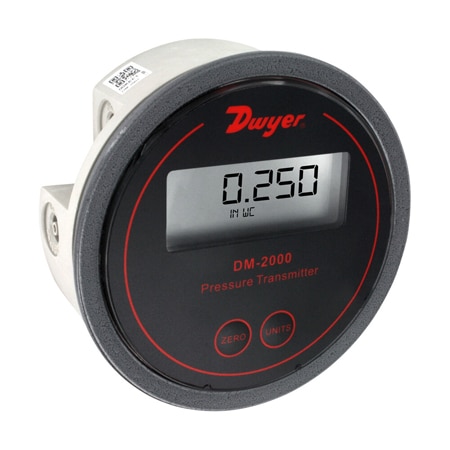

Dwyer DM-2004-LCD DM-2000 Differential Pressure Transmitter for Air & Gases, 4-20 mA (Differential, 1 inH₂O, Barbed Fitting, 1/8 in)

Weight: 136 g

Accuracy: ± 1 %

Display Note: 3.5 digit LCD, 0.7" H

Display Type: LCD

Accuracy Note: ± 1% FS, ± 30 Pa model ± 4% FS at 70°F

Mounting Note: Vertical

Output Signal: Current

Pressure Type: Differential

Pressure, Max: 1 inH₂O

Pressure, Min: 0 inH₂O

Proof Pressure: Up to 10 psi

Supply Voltage: 10 to 35 Vdc

Loop Resistance: 0 to 1250 Ω max

Number of Wires: 2

Span Adjustment: Push Button

Thermal Effects: ± 0.099% FS/°C

Number of Digits: 3.5

Electrical Output: 4 to 20 mA

Materials, Wetted: Consult Factory

Power Consumption: max 38 mA

Supply Power Type: DC

Long Term Stability: ± 1% FS/year

Media Compatibility: Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases

Thermal Effects Note: ± 0.055% FS/°F (0.099% FS/°C), ± 30 Pa model ± 0.13% FS/°F (0.234% FS/°C).

Electrical Connection: Screw Terminal

Process Connection Size: 1/8 in

Process Connection Type: Barbed Fitting

Operating Temperature, Max: 48.9 °C

Operating Temperature, Min: -6.67 °C

Material Construction Option: Standard

material-construction-option: Standard

Zero Setting Adjustable Range: Digital push-button
