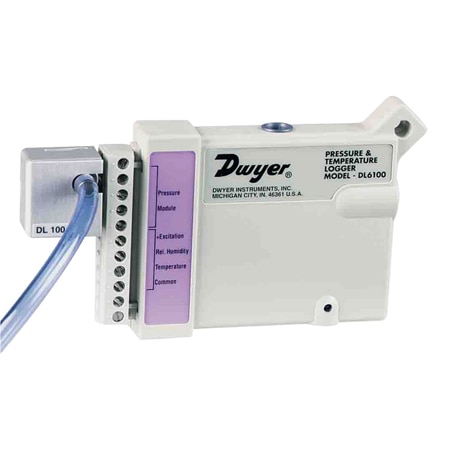

Dwyer DL6100 HVAC Pressure, Temp & RH Data Logger, 32k Readings, Remote Sensors (Temperature, Pressure, RH, ± 1%)

Drift: ± 0.2% FS/yr

Memory: 32,768 Readings

Weight: 5 oz

Compliance: CE

Input Type: Temperature, Pressure, RH

Resolution: 8 bits (1 in 256)

Stop Modes: Adjustable Delay Stop

Sensor Type: Thermistor

Pressure Type: Gauge

Pressure, Max: 100 psi

Pressure, Min: 0 psi

Clock Accuracy: ± 8 s/day plus one sampling interval

Proof Pressure: 4x Full Scale

Power Consumption: 5 to 10 µA

Pressure Accuracy: ± 1 %

Relative Humidity: 0 to 95%, Non-Condensing

Supply Power Note: 3.6 V TL5134 lithium metal battery, internal, factory replaceable

Supply Power Type: Battery

Number of Channels: 5

Media Compatibility: Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases

System Requirements: IBM compatible 386 or above and Windows® 3.1 or later with 2 MB RAM and 2 MB hard drive disk space, one serial port

Temperature Accuracy: ± 1%

Battery Size and Type: 3.6V Li-ion

Electrical Connection: Screw Terminal

Temperature Resolution: 0.7 °F

Operating Temperature, Max: 160 °F

Operating Temperature, Min: -50 °F

Compensated Temperature, Max: 158 °F

Compensated Temperature, Min: 32 °F
