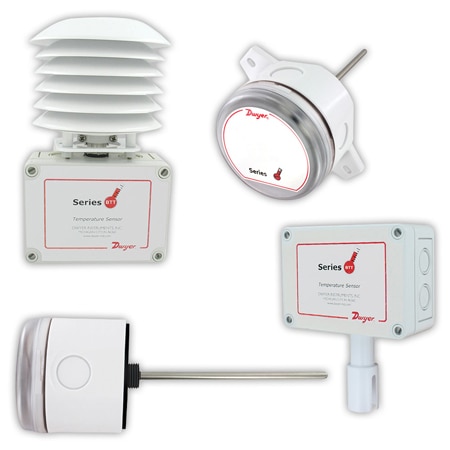

Dwyer BTT-D04-2 Temp Transmitter for HVAC - Compatible with TE Thermistor & RTD, NIST Options (Pt1000, 140 °F, Duct Mount)

Weight: 145 g

Accuracy: ± 0.5 °C

Compliance: CE

Sensor Type: Pt1000

Probe Length: 4 in

Output Signal: Voltage

Response Time: 100 ms

Supply Voltage: 13 to 36 Vdc/16 to 28 Vac

Thermal Effects: ± 0.01%/°C

Measurement Type: RTD

Enclosure Ratings: IP66, NEMA Type 4X

Materials, Wetted: 304 Stainless Steel, Neoprene, Polycarbonate

Supply Power Type: AC/DC

Mounting Orientation: Duct Mount

Voltage Output Range: 0 to 10 Vdc

Electrical Connection: 1/2 in NPT female Conduit with Screw Terminal block

Process Temperature, Max: 140 °F

Process Temperature, Min: -40 °F

Operating Temperature, Max: 302 °F

Operating Temperature, Min: -40 °F
