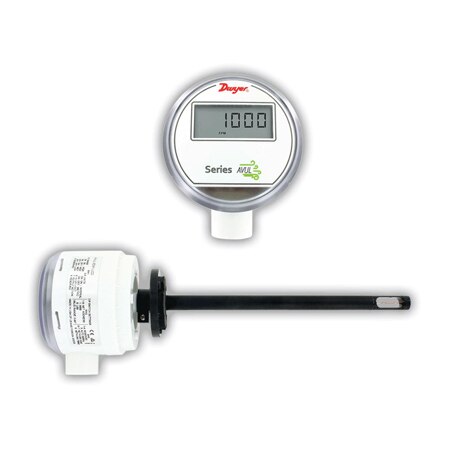

Dwyer AVU-2-A HVAC Air Velocity Transmitter – Accurate, Drift Resistant, Zone Control (1575 FPM, ± 5 %)

Weight: 8.8 oz

Accuracy: ± 5 %

Baud Rate: N/A

Compliance: CE

Wire Gauge: 16 AWG

Display Type: N/A

Probe Length: 9.45 in

Output Detail: 4 to 20 mA

Output Signal: Current

Response Time: 5 s @ 90%

Data Interface: N/A

Inrush Current: 85 mA; 10 V

Probe Diameter: 0.75 in

Supply Voltage: 20 to 26 Vdc

Load Resistance: 700 Ω

Number of Digits: N/A

Air Velocity, Max: 1575 FPM

Air Velocity, Min: 0 FPM

Enclosure Ratings: IP67, NEMA Type 6

Power Consumption: 60 mA + Output Current

Relative Humidity: 0 to 90% RH Non-Condensing

Supply Power Type: DC

Media Compatibility: Argon, Carbon dioxide, Clean Dry Air, Helium, Nitrogen, Non-Corrosive Dry Gases

Mounting Orientation: None

Electrical Connection: Cable Gland for 4 to 8 mm Wire with Screw Terminal block

Enclosure Ratings Note: NEMA 6 (IP67) Except Sensing Point

Operating Temperature, Max: 122 °F

Operating Temperature, Min: 32 °F

Datasheet
