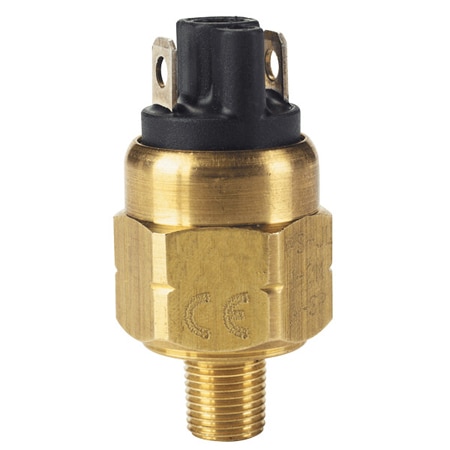

Dwyer A2-7811 Subminiature OEM Pressure Switch with High Proof Pressure & Adjustable Terminals (Gauge, 150 psi, NPT Male, 1/8 in)

Weight: 0.15 lb

Deadband: <10 % of Actuation

Compliance: CE

Switch Type: SPST NC

Pressure Type: Gauge

Pressure, Max: 150 psi

Pressure, Min: 50 psi

Repeatability: ± 3%

Switch Rating: 100 VA, 42 Vdc

Pressure Limits: Up to 350 psi

Materials, Wetted: Brass, Steel

Repeatability Note: ± 3% of highest set point at 70°F (21°C)

Media Compatibility: Consult Factory

Electrical Connection: Screw Terminal

Process Connection Size: 1/8 in

Process Connection Type: NPT Male

Operating Temperature, Max: 230 °F

Operating Temperature, Min: -40 °F
