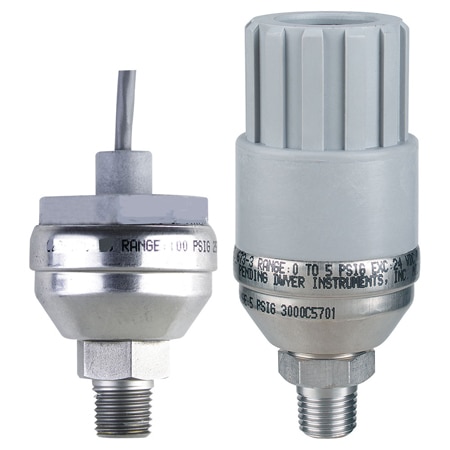

Dwyer 673-4 Economical Stainless Steel Pressure Transmitter, 4-20 mA Output, 0.25% Acc. (Gauge, 10 psi)

Shock: 200 g

Weight: 65 g

Accuracy: ± 0.25 %

Materials: Stainless Steel, Valox

Stability: 0.5% FS/year

Vibration: 20 g

Accuracy Note: ± 0.25% BFSL (RSS), (includes non-linearity, hysteresis and non repeatability)

Output Detail: 4 to 20 mA

Output Signal: Current

Pressure Type: Gauge

Pressure, Max: 10 psi

Pressure, Min: 0 psi

Response Time: 5 ms

Proof Pressure: Up to 2000 psi

Supply Voltage: 9 to 30 Vdc

Loop Resistance: 0 to 800 Ω

Number of Wires: 2

Span Adjustment: Fixed

Thermal Effects: Zero: ± 3.6% FS/100°F; Span: ± 2.7% FS/100°F

Materials, Wetted: 17-4 Stainless Steel

Supply Power Type: DC

Media Compatibility: Air, Gases, Nitrogen, Oil, Oxygen, Solvents, Water

Electrical Connection: Cable

Operating Temperature, Max: 185 °F

Operating Temperature, Min: -40 °F

Compensated Temperature, Max: 176 °F

Compensated Temperature, Min: -40 °F

Zero Setting Adjustable Range: Fixed
