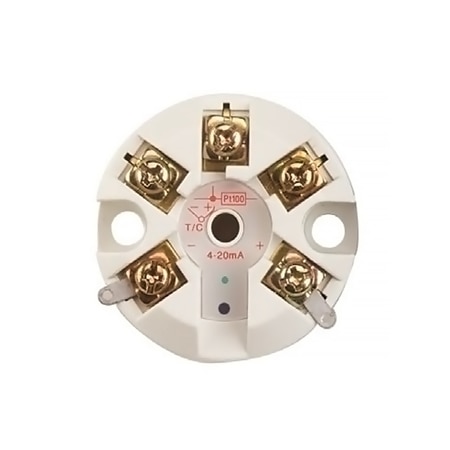

Dwyer 659TH-1 Push-Button Temp Transmitters for Thermocouple/RTD, 4-20 mA Output (Thermistor)
ManufacturerDwyer(View more products from this manufacturer)
Model659TH-1
USD 263.88
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Weight: 26 g
Accuracy: ± 0.25 °F
Compliance: CE
Sensor Type: Thermistor
Output Detail: Linearized 4 to 20 mA, 2-wire loop powered
Output Signal: Current
Sampling Rate: 0.5 Hz (2 seconds between updates)
Current Output: 4 to 20 mA
Burnout Current: Upscale 22 mA
Loop Resistance: 24 Vdc
Number of Wires: 2
Measurement Type: Thermistor
Relative Humidity: 80% RH
Span Temperature Drift: 0.5 µA/°C
Zero Temperature Drift: 0.2 µA/°C
Temperature Input Range: -13 to 257 °F
Operating Temperature, Max: 158 °F
Operating Temperature, Min: -4 °F
