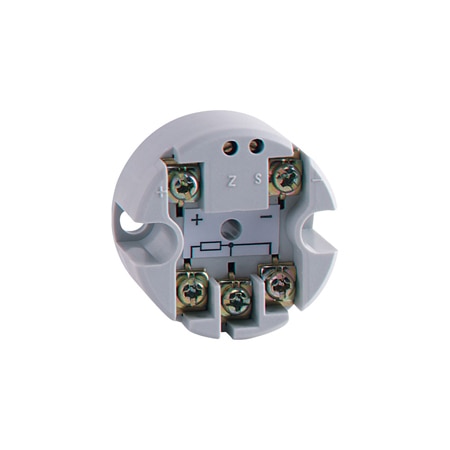

Dwyer 651A-10 Temp Transmitter for Pt100 RTDs & Type K, 32-160 °F, 4-20 mA (Pt100)

Accuracy: ± 0.2 °C+0.2 % rdg

Impedance: 700 Ω @ 24 dc

Compliance: CE

Input Note: 2 or 3-wire Pt100 RTD (models 651A)

Sensor Type: Pt100

Output Detail: Linearized 4 to 20 mA, 2-wire loop powered

Output Signal: Current

Response Time: 200 ms

Current Output: 4 to 20 mA

Supply Voltage: 10 to 32 Vdc

Number of Wires: 2

Measurement Type: RTD

Supply Power Note: 10 to 32 VDC, reverse connection protected.

Supply Power Type: DC

Response Time Note: 10 to 90% in 200 ms

Span Temperature Drift: 0.0036%/°F

Zero Temperature Drift: 0.09%/°F

Temperature Input Range: 32 to 212 °F

Storage Temperature, Max: 160 °F

Operating Temperature, Max: 122 °F

Operating Temperature, Min: 32 °F
