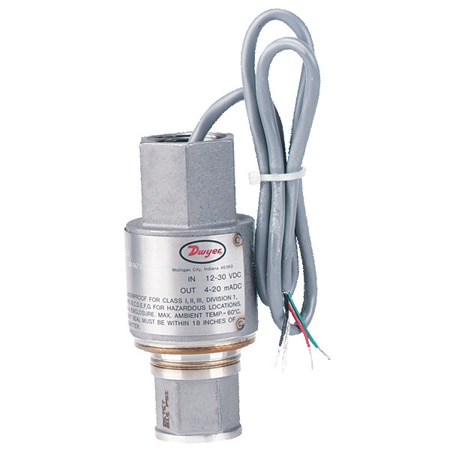

Dwyer 636-0 Fixed Range Pressure Transmitter, SS, ± 0.30% Accuracy, Explosion-Proof (Gauge, 15 psi, NPT Female, 1/2 in)

Weight: 374 g

Accuracy: ± 0.3 %

Stability: ± 0.5% of upper range limit for six months

Compliance: CSA, FM

Fill Fluid: DC 200 silicone oil

Wire Gauge: 22 AWG

Accuracy Note: ± 0.30% of calibrated span including linearity hysteresis and repeatability (BFSL) at 25°C (77°F) and 12 VDC excitation

Output Detail: 4 to 20 mA DC, limited to 30 mA DC

Output Signal: Current

Pressure Type: Gauge

Pressure, Max: 15 psi

Pressure, Min: 0 psi

Proof Pressure: Up to 45 psi

Supply Voltage: 12 to 30 Vdc

Compliance Note: FM and CSA approved explosion-proof for Class I, Division 1, Groups B, C, and D, Class II Groups E, F, and G Class III

Loop Resistance: 900 Ω max @ 30 V

Span Adjustment: ± 0.16 mA

Thermal Effects: ± 2.0%/50°F (includes zero and span). Between -20 and 180°F (-29 and 82°C). ± 2.0% per 50°F (28°C).

Enclosure Ratings: IP56, NEMA Type 4

Materials, Wetted: 316L Stainless Steel

Supply Power Note: 12-30 VDC (636), 8-14 VDC (636LP), reverse polarity protection

Supply Power Type: DC

Media Compatibility: Air, Gases, Nitrogen, Oil, Oxygen, Solvents, Water

Electrical Connection: 3/4 in NPT female Conduit with Cable

Process Connection Size: 1/2 in

Process Connection Type: NPT Female

Process Temperature, Max: 212 °F

Process Temperature, Min: -40 °F

Operating Temperature, Max: 140 °F

Operating Temperature, Min: -40 °F

Compensated Temperature, Max: 180 °F

Compensated Temperature, Min: -20 °F

Zero Setting Adjustable Range: ± 0.32 mA
