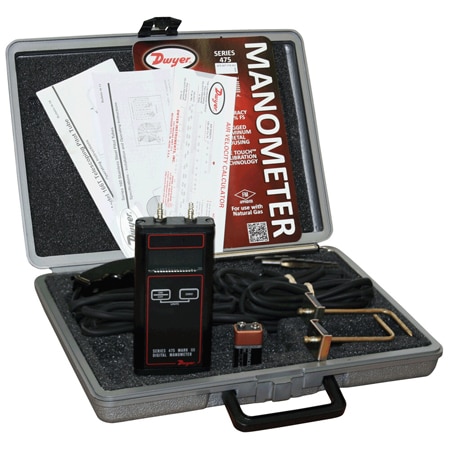

Dwyer 475-00T-FM-AV Digital Manometer Kit 0-20 inH2O ± 0.5% Accuracy, LCD, Pitot Tube, Tips (± 0.5 %, 4 inH₂O)

Accuracy: ± 0.5 %

Materials: Polyethylene

Resolution: 0.01

Pitote Tube: 36 in Telescoping Stainless Steel

Port 1 Size: 3/16 in

Port 1 Type: Barbed Fitting

Port 2 Size: 3/16 in

Port 2 Type: Barbed Fitting

Display Type: LCD

Pressure, Max: 4 inH₂O

Pressure, Min: 0 inH₂O

Proof Pressure: Up to 10 psi

Measurement Type: Pressure

Supply Power Type: Battery

Calibration Option: N/A

Additional Features 1: Kit includes static pressure tips, rubber tubing, Pitot tube, step drill, air velocity slide chart and carrying case

Battery Size and Type: Alkaline 9V

Pressure(Inclined), Max: 0 inH₂O

Pressure(Vertical), Max: 0 inH₂O
