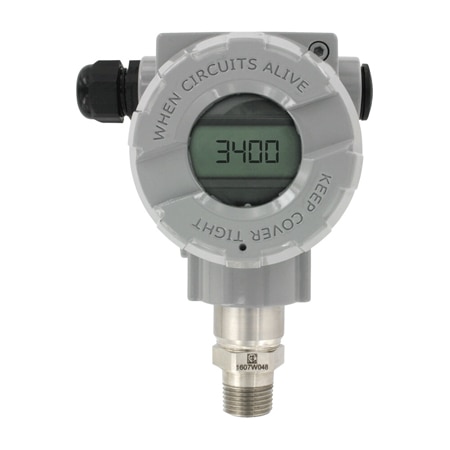

Dwyer 3400-AL-13-NM-2 Smart Pressure Transmitter, HART® Comm, ATEX/IECEX, for water & chemicals (Gauge, 100 psi, NPT Male, 1/2 in)

MTBF: 1,000,000 hours

Accuracy: ± 0.075 %

Materials: Aluminum

Stability: ≤0.075% FSO/3 years

Compliance: CE

Damping Time: 0 to 60 s

Accuracy Note: ± 0.075% FS (@ 20°C)

Output Detail: 4 to 20 mA

Output Signal: Current

Pressure Type: Gauge

Pressure, Max: 100 psi

Pressure, Min: 0 psi

Response Time: 16 to 480 ms

Burst Pressure: 30 psi Maximum

Set Point, Min: 1.45 psi

Supply Voltage: 10 to 55 Vdc

Turndown Ratio: 100:1

Compliance Note: CE; -IS, -FP suffix: ATEX Compliant 0518 II 2G ia/db IIC T6/T5 Gb Ta<80°C, T5 / II 2D Ex ia/tb IIIC T85°C/T100°C Db. Type Certificate No. KDB 17ATEX0056X. ATEX Standards: EN 60079-0:2012+A11:2013,EN 60079-1:2014, EN 60079-11:2012, EN 60079-26:2015, EN 60079-31:2014. IECEx Compliant: Ex ia/db IIC T6/T5 Gb / Ex ia/tb IIIC T85°C/T100° Db. Certificate of Conformity IECEx KDB 17.0008X. IECEx Standards: IEC 60079-0:2011, IEC 60079-1:2014-06, IEC 60079-11:2011, IEC 60079-26:2006, IEC 60079-31:2013

Thermal Effects: < ± 0.05% span/10°C

Enclosure Ratings: IP66, IP67, NEMA Type 4X

Materials, Wetted: 316L Stainless Steel

Supply Power Type: DC

Media Compatibility: Alcohols, Argon, Compatible Gases, Compatible Liquids, Nitrogen, Oils, Water

Electrical Connection: 1/2 in NPT female Conduit with Screw Terminal block

Process Connection Size: 1/2 in

Process Connection Type: NPT Male

Operating Temperature, Max: 185 °F

Operating Temperature, Min: -40 °F
