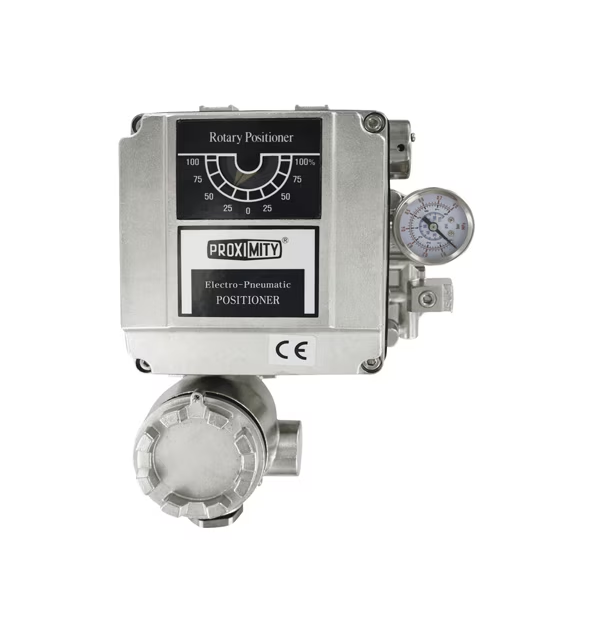

Dwyer 265ER-S5SS Pneumatic & Electro-Pneumatic Positioners for Rotary Valves (316 stainless steel, 6.2 lb, single action)

Action: Single

Air Connection: 1/4 in NPT Female

Air Consumption: 0.1 SCFM

Air Flow, Max: 28 SCFM

Air Supply Pressure, Max: 101 psi

Air Supply Pressure, Min: 20 psi

Compliance: CE

Conduit Connection: 1/2 in NPT female

Electrical Connection: Screw Terminal

Enclosure Material: 316 Stainless Steel

Enclosure Ratings: IP66

Gauge Port Size: 1/8 in NPT female

Hysteresis: 1% FS

Impedance: 250 ± 15 Ω

Input Type: mA

Lever Type: NAMUR

Linearity: ± 2% FS

Operating Temperature, Max: 158 °F

Operating Temperature, Min: -4 °F

Pressure Type: Gauge

Repeatability: ± 0.5% FS

Sensitivity: ± 0.5% FS

Stroke: 0 to 90°

Weight: 6.2 lb
