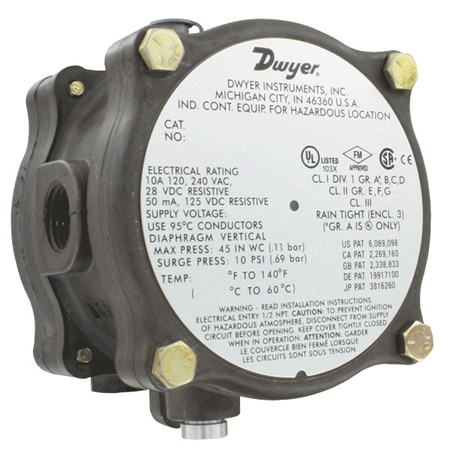

Dwyer 1950G-1-B-24-NA Explosion-Proof Differential Pressure Switch, Weatherproof, UL Listed, 24 V (Differential, 1.6 inH₂O, NPT Female, 1/8 in)

Weight: 1.35 kg

Deadband: 0.11 to 0.29 inH2O

Compliance: CSA, FM, UL

Switch Note: 1 form C relay (SPDT), 10 A, 120/240 VAC, 28 VDC. Resistive 50 mA, 125 VDC

Switch Type: SPDT NO/NC, Selectable

Pressure Type: Differential

Pressure, Max: 1.6 inH₂O

Pressure, Min: 0.4 inH₂O

Switch Rating: 10 A @ 120/240 Vac/28 Vdc; 50 mA @ 125 Vdc

Proof Pressure: Up to 45 inH2O

Supply Voltage: 24 Vdc

supply-voltage: 24 Vdc

Materials, Wetted: Consult Factory

Supply Power Type: DC

Media Compatibility: Air, Argon, Butane, Carbon dioxide, Combustible Gases, Helium, Hydrogen, Methane, Nitrogen, Non-Corrosive Dry Gases, Oxygen, Propane

Mounting Orientation: Vertical Diaphragm

Set Point Adjustment: External Screw

Electrical Connection: Screw Terminal

Process Connection Size: 1/8 in

Process Connection Type: NPT Female

Operating Temperature, Max: 140 °F

Operating Temperature, Min: 0 °F
