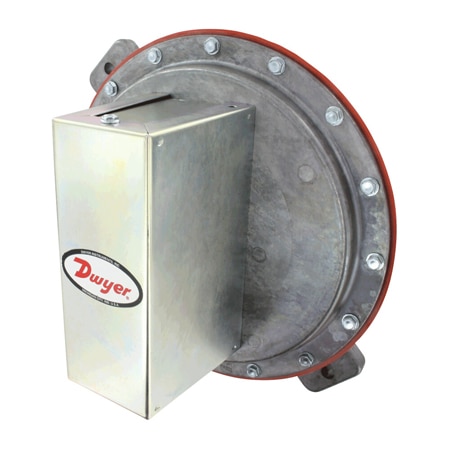

Dwyer 1627-20 Pressure Switch for Air Control – High Precision, Leak-Proof, Easy Mounting (24 inH₂O, NPT Female, 1/8 in)

Weight: 1.69 kg

Deadband: 0.5 to 1.2 inH2O

Compliance: CE

Switch Note: 15 A @ 120-480 VAC, 60 Hz. Resistive, 1/8 HP @ 125 VAC,1/4 HP @ 250 VAC, 60 Hz

Switch Type: (2) SPDT

switch-type: (2) SPDT

Pressure, Max: 24 inH₂O

Pressure, Min: 8 inH₂O

Repeatability: ± 1%

Switch Rating: 15 A @ 120-480 Vac, 1/8 HP @ 125 Vac, 1/4 HP @ 250 Vac

Proof Pressure: Up to 50 inH2O

Materials, Wetted: Consult Factory

Media Compatibility: Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases

Mounting Orientation: Vertical Diaphragm

Set Point Adjustment: Screw Adjustment

Electrical Connection: Screw Terminal

Process Connection Size: 1/8 in

Process Connection Type: NPT Female

Operating Temperature, Max: 130 °F

Operating Temperature, Min: -30 °F
