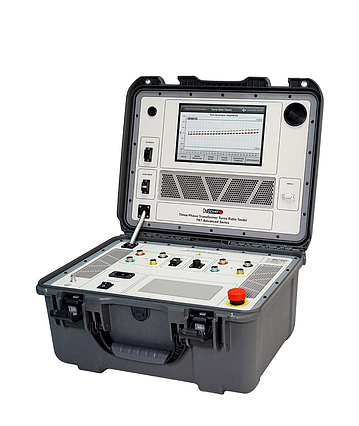

DV Power TRT500 True Three-Phase Transformer Turns Ratio Tester

Mains Power Supply:

Connection: according to IEC/EN60320-1; UL498, CSA 22.2

Mains supply: 90 – 264 V AC, 50/60 Hz

Input power: 250 VA

Turns Ratio Measurement:

Range: 0.8 – 50 000

Resolution: 5 digits

Excitation Current Measurement:

Range: 0 – 2 A

Resolution:

0.0000 – 9.9999 mA/ 0.1 μA

10.000 – 99.999 mA/ 1 μA

100.00 – 999.99 mA/ 10 μA

1.0000 – 2.0000 A/ 100 μA

Typical accuracy: ±(0.25% rdg + 0.5 mA)

Phase Angle Measurement:

Range: 0 – 360º

Resolution: 0.01º

Typical accuracy: ±0.05º

Display: 10.1” graphical touch screen display

Test Voltages: 1, 8, 10, 40, 80, 100, 170, 250, 430, 500 V AC

Operating temperature: -20 ºC – +60 ºC / -4 ºF – +140 ºF

Storage & transportation temperature: -40 ºC – +70ºC / -40 ºF – +158 ºF

Humidity: 0 – 95% relative humidity, noncondensing

Dimensions (W x H x D): 505 x 257 x 409 mm / 19.9 x 10.1 x 16.1 in

Weight: 10.5 kg / 23.1 lbs

Included Accessories:

Windows-based DV-TR PC software

USB cable Ethernet cable

Tap changer control cable 5 m (16.4 ft)

Mains power cable

Ground (PE) cable

Debug adapter

Transport case

Brochure
