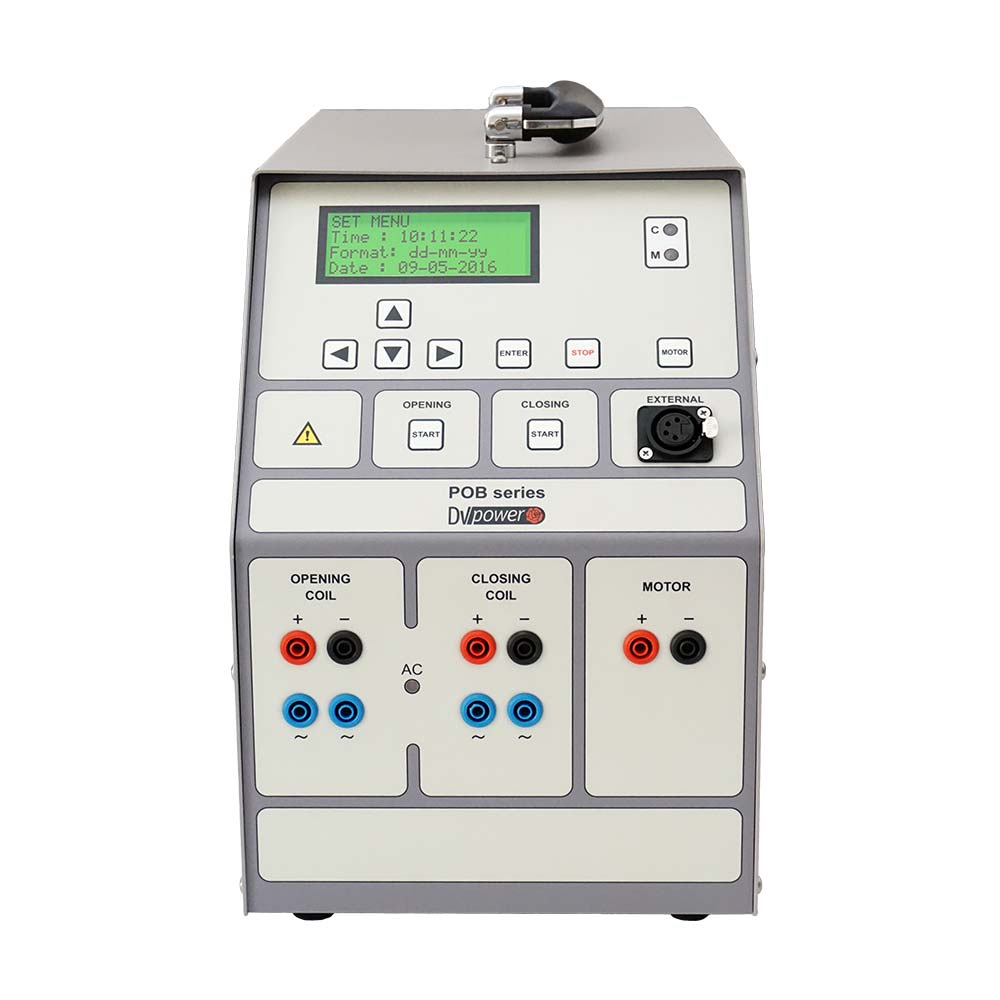

DV Power POB30AD Coil Analyzers & Power Supply Units (10V-300V DC/10V – 250V AC)

Mains Power Supply

• Connection: according to IEC/EN60320-1; UL498, CSA 22.2

• Voltage 90 V – 264 V AC, 50/60 Hz,

Single phase

• Power consumption: 4000 VA

Output data

• Coil outputs: DC Voltage 10 V to 300 V DC, separate opening and closing coil outputs

• Coil outputs: AC Voltage 10 V to 250 V AC; 50 Hz; true RMS separate opening and closing coil outputs

• Motor output DC Voltage 10 V to 250 V DC

• Output motor current: POB30AD: max 30 A DC (inrush current)

Measurement

• Voltage: 10 V – 300 V DC or 10 V – 250 V AC

• Current: 1 A – 50 A

• Accuracy: ± (0,25% rdg + 0,25% FS)

Environment conditions

• Operating temperature: 10 °C - +55 °C / +14 °F - +131 °F

• Storage and transportation: -40 °C - +70 °C / -40 °F - +158 °F

• Humidity Maximum relative humidity 95%, non-condensing

Dimensions and Weight

• Dimensions (W x H x D) with handle down 216 mm x 380 mm x 396 mm (8.5 in x 14.9 in x 15.59 in)

• Weight 11 kg / 24.25 lbs

Mechanical protection: IP50

Applicable Standards

• Low Voltage Directive: Directive 2014/35/EU (CE conform).

• Applicable standards, for a class I instrument, pollution degree 2, Installation category II: IEC EN 61010-1
