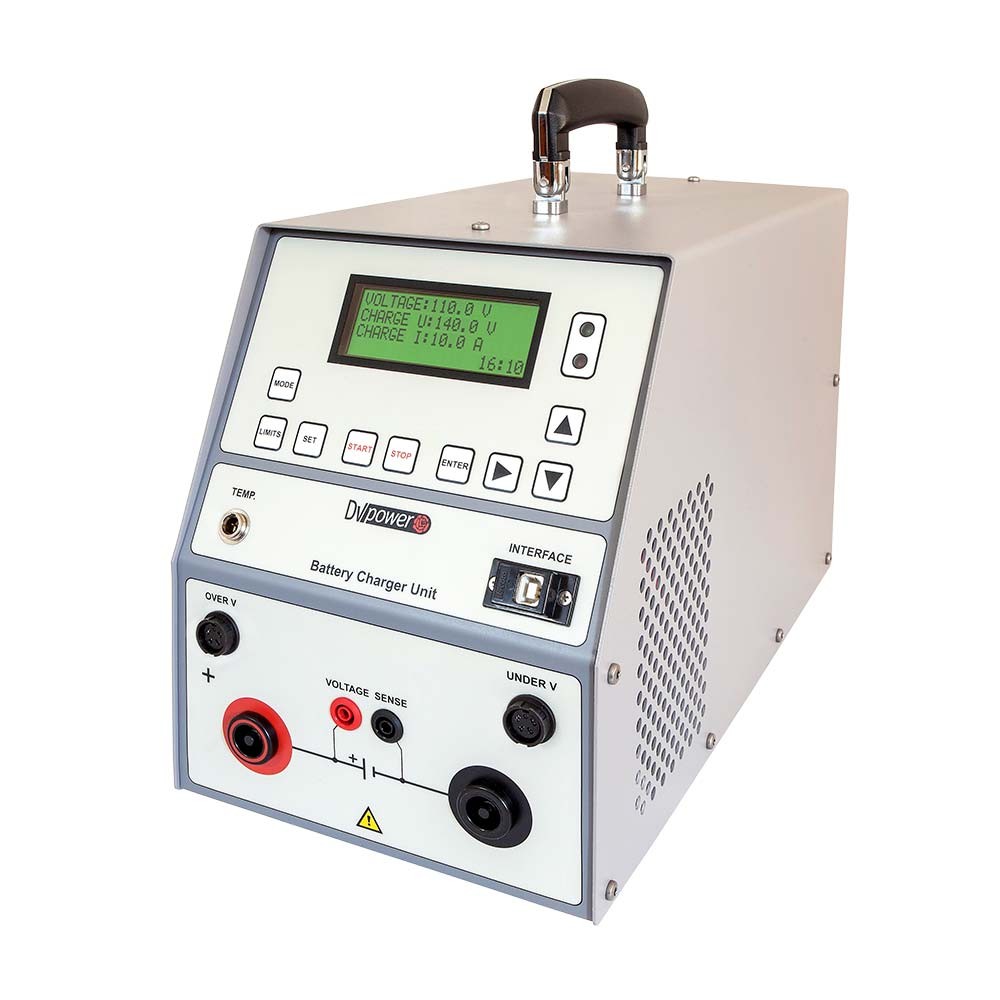

DV Power BAC25A Battery Chargers (10-300 V DC, 25 A DC)

Mains Power Supply

• Connection according to IEC/EN60320-1; C320

• Voltage 90 V – 264 V AC, 50 / 60 Hz, single-phase

• Power consumption: up to 3300 VA

Output data

• Max. Output current: 25 A DC

• Voltage: 10-300 V DC

• Typical voltage accuracy: ± (0.25 % rdg + 0.25 % FS)

• Full load currents at maximum voltages

Environment conditions

• Temperature -20 °C to +55 °C / -4 °F to +131 °F

• Maximum relative humidity 95 % for temperatures up to 31 °C, decreasing linearly to 40 % relative humidity at 45 °C.

• Pollution degree 2

Dimensions and Weight

• Dimensions(D x W x H) without handle: 407 mm x 198 mm x 275 mm/ 16 in x 7.8 in x 10.8 in

• Weight: 10 kg / 22 lbs.
