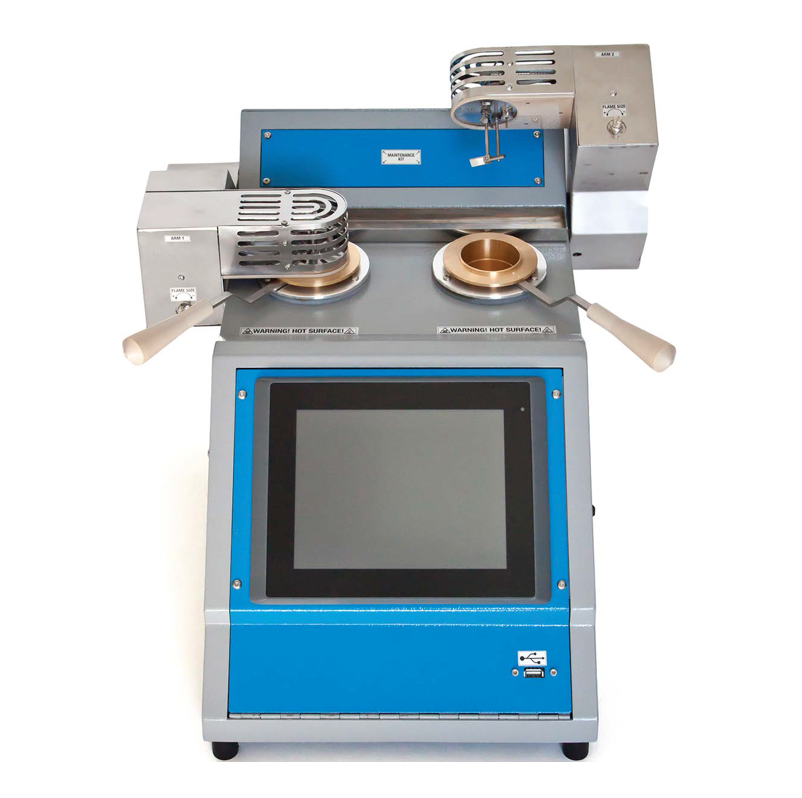

DUCOM FPM Pensky Martens Flash Point Tester (0~+420°C; 0.01°C; ±0.1°C)

Measuring parameters:

- Temperature: °C/°F

- Measuring Range: 0°C to +420°C

- Resolution: 0.01°C

- Accuracy: ±0.1°C

Temperature measurement:

- Sample temperature: stainless steel, corrosion and shock-resistant PT100 sensor

- Bath temperature: PT100 Sensor

Safety devices:

- Automated diagnostics of PT100 probe and thermal sensors

- Automatic fire detection and fire extinguisher systems

- Gas valve closes gas supply (30 mbar max.) at the end of the test

Operating range:

- Ambient to 35°C

- Max. R.H. 80%

Operation

- Stirrer: designed with an electric motor

- Double ignition system: gas and electrical ignitor

- Heater: electrical heating as per ASTM procedures

Dimensions (WxDxH) and weight: 37x52x32cm, 30kg

Electrical supply: 220V ± 15% / 50 to 60Hz

115V ± 15% / 60Hz

Datasheet
