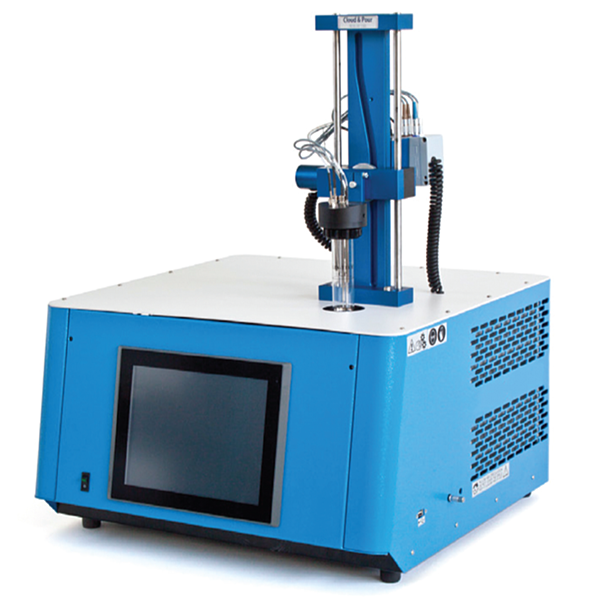

DUCOM CPP Cloud and Pour Point Tester (+80~-80°C; 0.06°C; ±0.1°C)

Temperature: °C/°F

Measuring range: +80°C to -80°C

Resolution: 0.06°C

Accuracy: ±0.1°C

Temperature measurement: PT100, Class A

Measuring devices:

- Cloud: Light-pulsed emission, I.R. spectrum; coaxial fiber optic system

- Pour Point: PT100 Probe; mechanical arm adjusts the position of the test jar

Cooling system:

- Integrated CFC-free motor compressors

+ Single stage (for temperatures up to -40°C/1)

+ Double stage (for temperatures up to -80°C/2)

- Equipped with an automatic energy power save system

Dimensions and weight: 66x60x80cm (WxDxH), 60kg

Operating range: Ambient to 35°C

Max. R.H. 80%

Electrical supply: 220V+15%/ 50 to 60Hz
