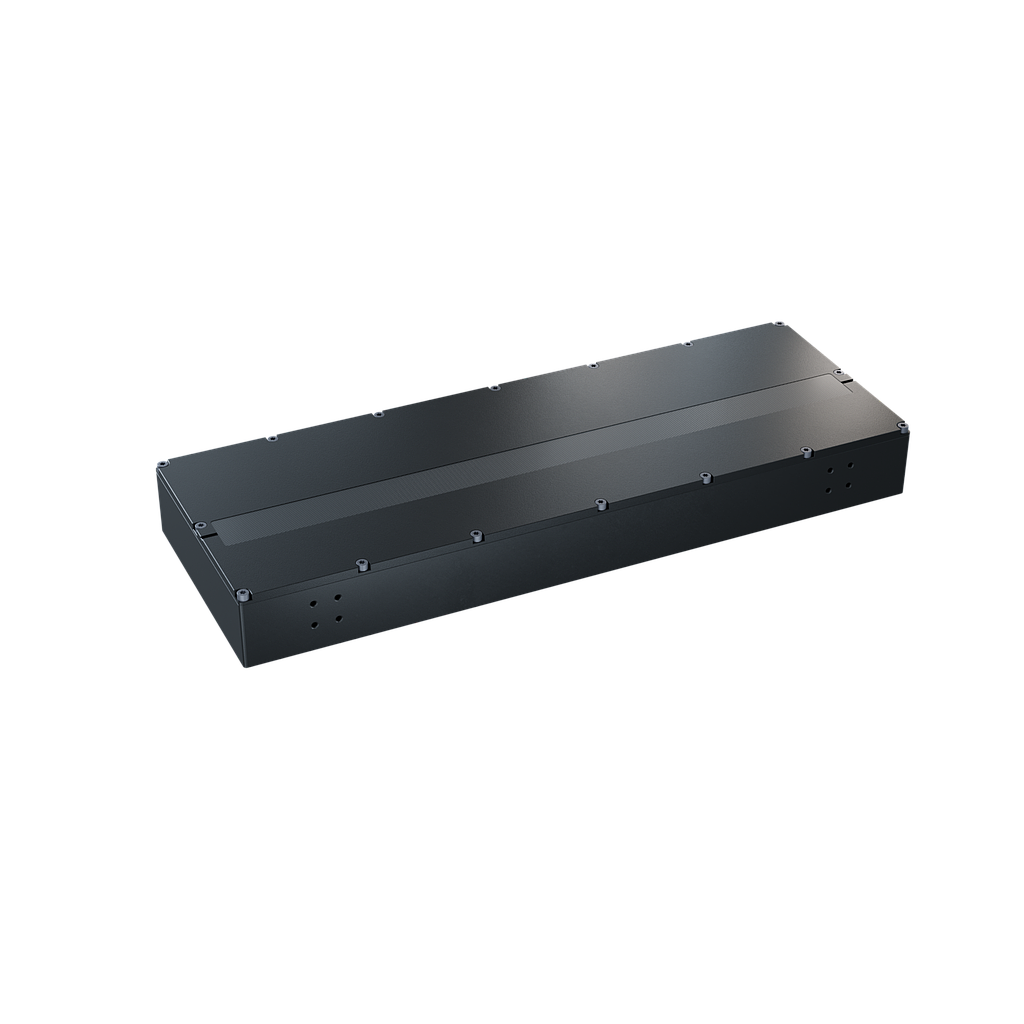

DT Detection Technology X-Scan T02 High-resolution TDI X-ray linear detector arrays (4096 x 128, 205 mm x 6.4 mm)

Operational mode : Time delay integration (TDI)

Number of TDI stages : 128

TDI algorithm : Built-in

Pixel size : 50 µm

Pixel matrix : 4096 x 128

Active area : 205 mm x 6.4 mm

Maximum scanning speed : 1 m/s @ 50 µm pixel pitch

TDI line rate : 20 kHz

Energy range : ~20–200 kV

Mechanical dimensions (L x W x H) : ~250 mm x 160 mm x 50 mm

Weight : ~5 kg

Internal radiation shield : Yes, X-ray beam max width at detector: ≤10 mm for 205 mm model / ≤32 mm for 410 mm model

Lifetime under X-ray : 10 kGy

Collimator:  Yes, internal shielding collimator

Interface : 10 Gb ENET over fiber (FSP+)

Data output : 12–16 bit in TDI mode

External trigger support : Yes, including A/B/Z encoder (Differential input)

Operational voltage : +24 V DC

Power consumption : < 100 W

Ingress protection rating : IP56

Temperature and humidity:

• Operational: 0 – +50 °C / 10 – 95 % (non-condensing)

• Storage: 0 – +40 °C / 10 – 95 % (non-condensing)

• Transport: -10 – +60 °C / 10 – 95 % (non-condensing)

Compliances : CE, UKCA, RoHS, China RoHS, WEEE, EMC: IEC61326-1
