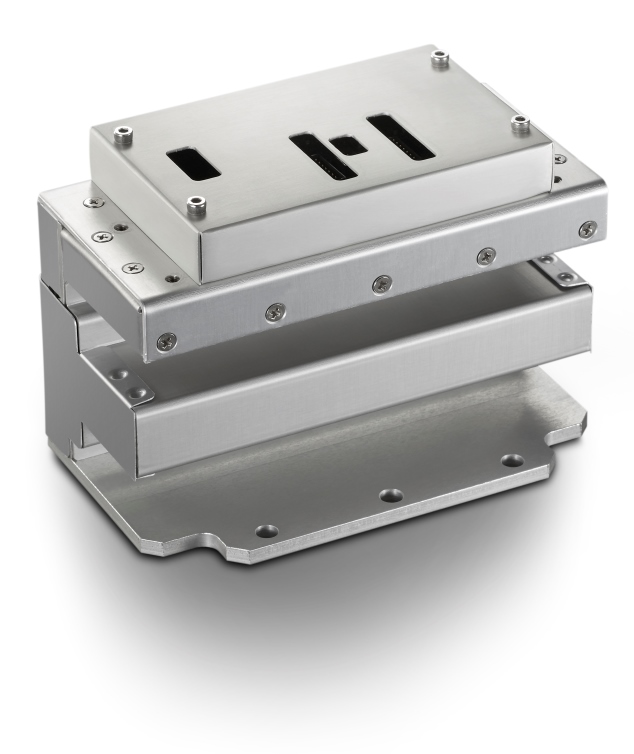

DT Detection Technology X-Scan D01920147B High-energy detector modules

Scintillator material : Cesium Iodide, CsI(Tl)

Number of row(s) per DM : 2

Number of read-out channels per DM : 32(16 pixels per row x 2)

Max DM quantity : 16 DMs per segment, 5 segments per X-GCU max 80 DMs total per system

Max number of read-out channels for the system @ max 80 DMs : 2560

Pixel pitch : 9.2 mm

Pixel height : 7.1 mm

Pixel width:  8.6 mm

Pixel absorption length : 40 mm

Row pitch:  8.0 mm

Max scanning speed : 1,000 lines/sec (1 kHz pulse rate)

Min integration time (per pulse) : 100 us

Number of sensitivity setting steps : 63

Min range : 6 pC/pixel

Max range : 378 pC/pixel

Range step:  6 pC/pixel

A/D resolution : 18-bits, Typical dynamic range >14 bits

Linearity:  > 99.9 %

Operational voltage : 12 to 24 V DC

Power consumption per DM : DM 1.2 W/module (typ), X-GCU EX-H: 3.2 W (typ)

Weight : DM: 1.3 kg, X-GCU EX-H: 1kg
