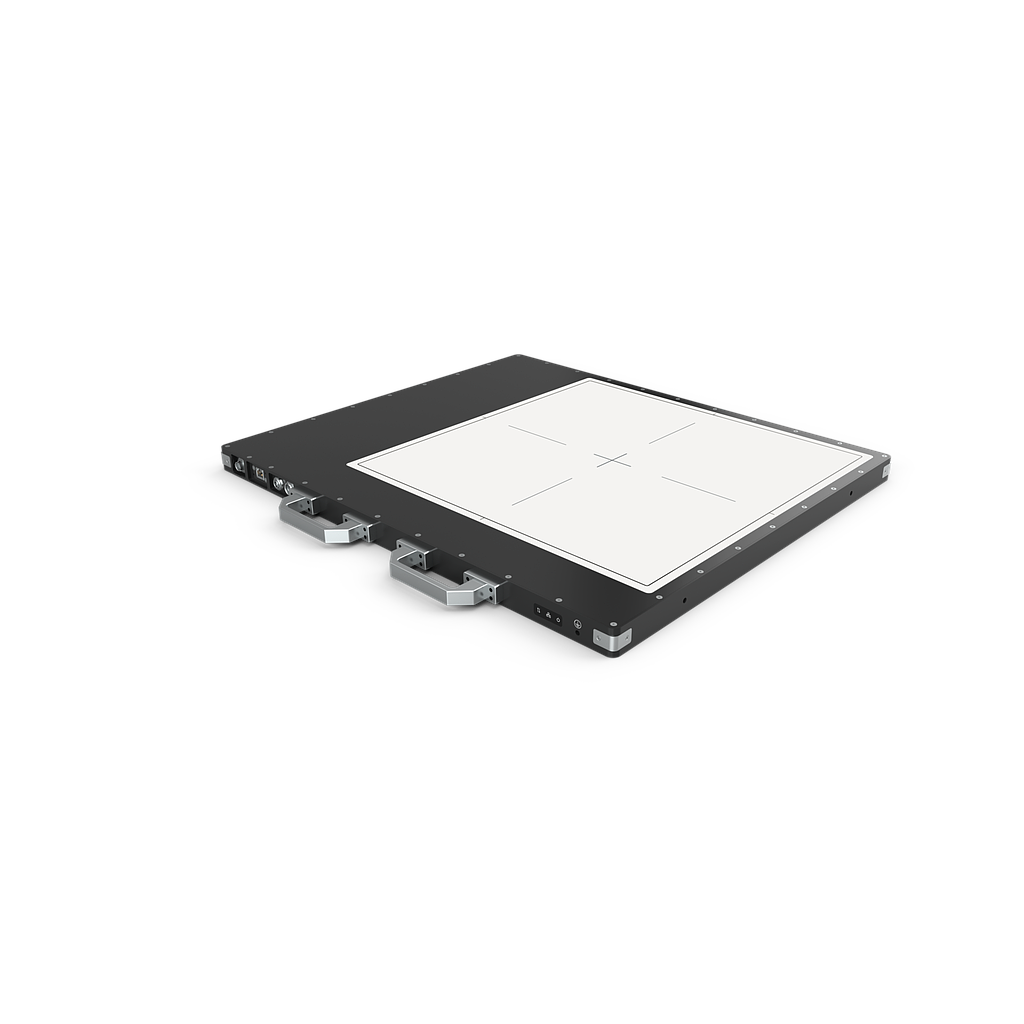

DT Detection Technology X-Panel 4343a FQI-CSV-XH Flat panel detector (a-Si-TFT, 4288 x 4288, 100 μm)

Technology:

Sensor: a-Si-TFT

Scintillator: CsI

Active area: 430 x 430 mm

Pixel matrix: 4288 x 4288

Pixel pitch: 100 μm

ADC: 16 bits

Interface:

Data interface: Optical fiber

Max frame rate: 8 fps (1×1) / 16 fps (2×2)

Mechanics:

Dimensions (H x W x D): 630 x 540 x 30 mm

Weight: 12.4 kg

Environmental:

Temperature: 10~35°C (operating); -10~50°C (storage)

Humidity: 30~70% RH (non-condensing)

IP rating: IP65

Power:

Dissipation: 24 W

Applications: Linac, High Energy NDT
