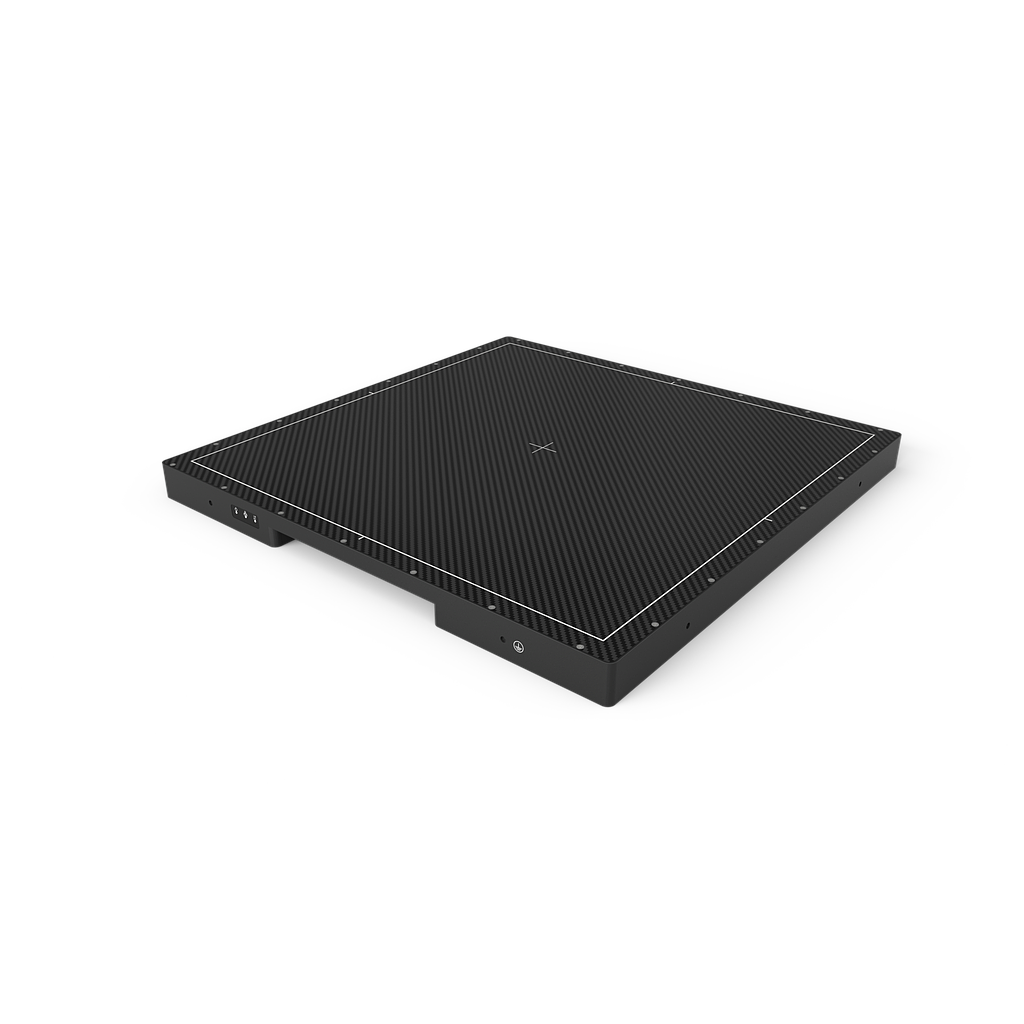

DT Detection Technology X-Panel 4343a FOI-CSV Flat panel detector (a-Si-TFT, 3072 x 3072, 140 μm)

Technology:

Sensor: a-Si-TFT

Scintillator: CsI

Active area: 430 x 430 mm

Pixel matrix: 3072 x 3072

Pixel pitch: 140 μm

ADC: 16 bits

Interface:

Data interface: Optical fiber

Max frame rate: 30 fps (1×1) / 60 fps (2×2)

Mechanics:

Dimensions (H x W x D): 470 x 470 x 32.5 mm

Weight: 9.5 kg

Environmental:

Temperature: 10~35°C (operating); -10~50°C (storage)

Humidity: 30~70% RH (non-condensing)

IP rating: IPX0

Power:

Dissipation: 30 W

Applications: Casting, pipe welding, pressure container, industrial CT
