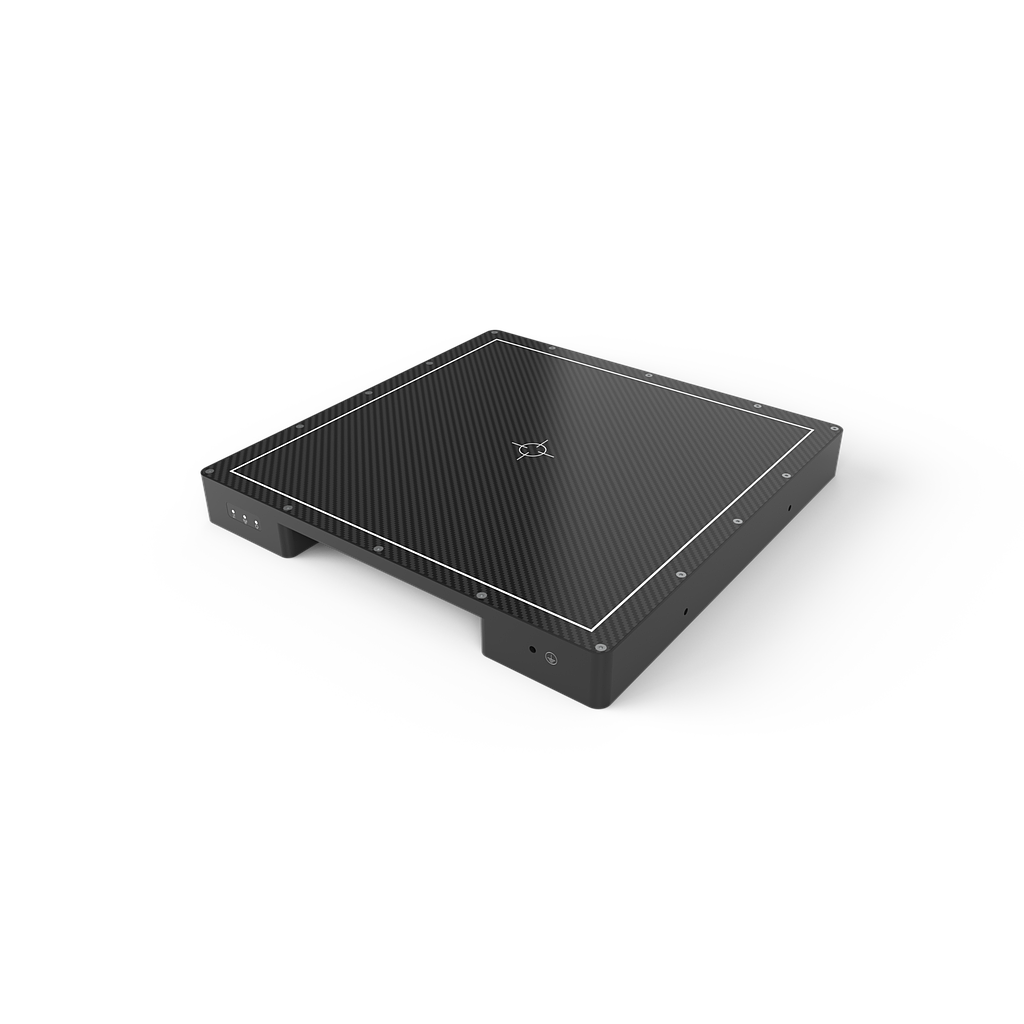

DT Detection Technology X-Panel 3030z FDM-CSV-TG-X Flat panel detector (IGZO-TFT, 3072 x 3072, 99 µm)

Technology:

Sensor: IGZO-TFT

Scintillator: CsI

Active area: 304 x 304 mm

Pixel matrix: 3072 x 3072

Pixel pitch: 99 µm

ADC: 16 bits

Interface:

Data interface: 10 G Ethernet

Max frame rate: 40 fps (1×1) / 80 fps (2×2)

Mechanics:

Dimensions (H x W x D): 344 x 341 x 39 mm

Weight: 6.3 kg

Environmental:

Temperature: 10~35°C (operating); -10~50°C (storage)

Humidity: 30~70% RH (non-condensing)

IP rating: IPX0

Power:

Dissipation: 36 W

Applications: Surgical, C-arm
