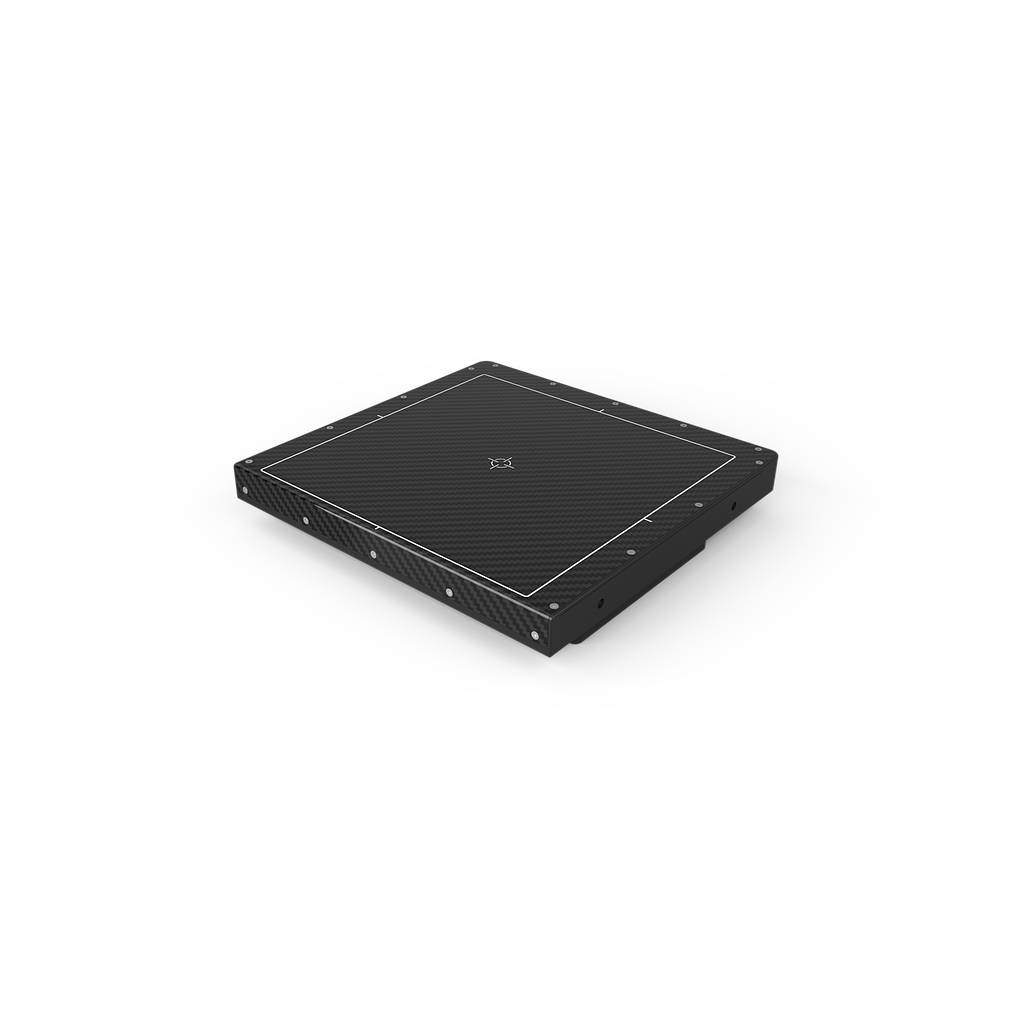

DT Detection Technology X-Panel 1717z FDM-CSV Flat panel detector (IGZO-TFT, 1536 x 1536, 111 µm)

Technology:

Sensor: IGZO-TFT

Scintillator: CsI

Active area: 170 x 170 mm

Pixel matrix: 1536 x 1536

Pixel pitch: 111 µm

ADC: 16 bits

Interface:

Data interface: 2.5 G Ethernet

Max frame rate: 40 fps

Mechanics:

Dimensions (H x W x D): 204 x 196 x 35 mm

Weight: 2.0 kg

Environmental:

Temperature: 10~35°C (operating); -10~50°C (storage)

Humidity: 30~70% RH (non-condensing)

IP rating: IPX0

Power:

Dissipation: 11.5 W

Applications: Dental CBCT
