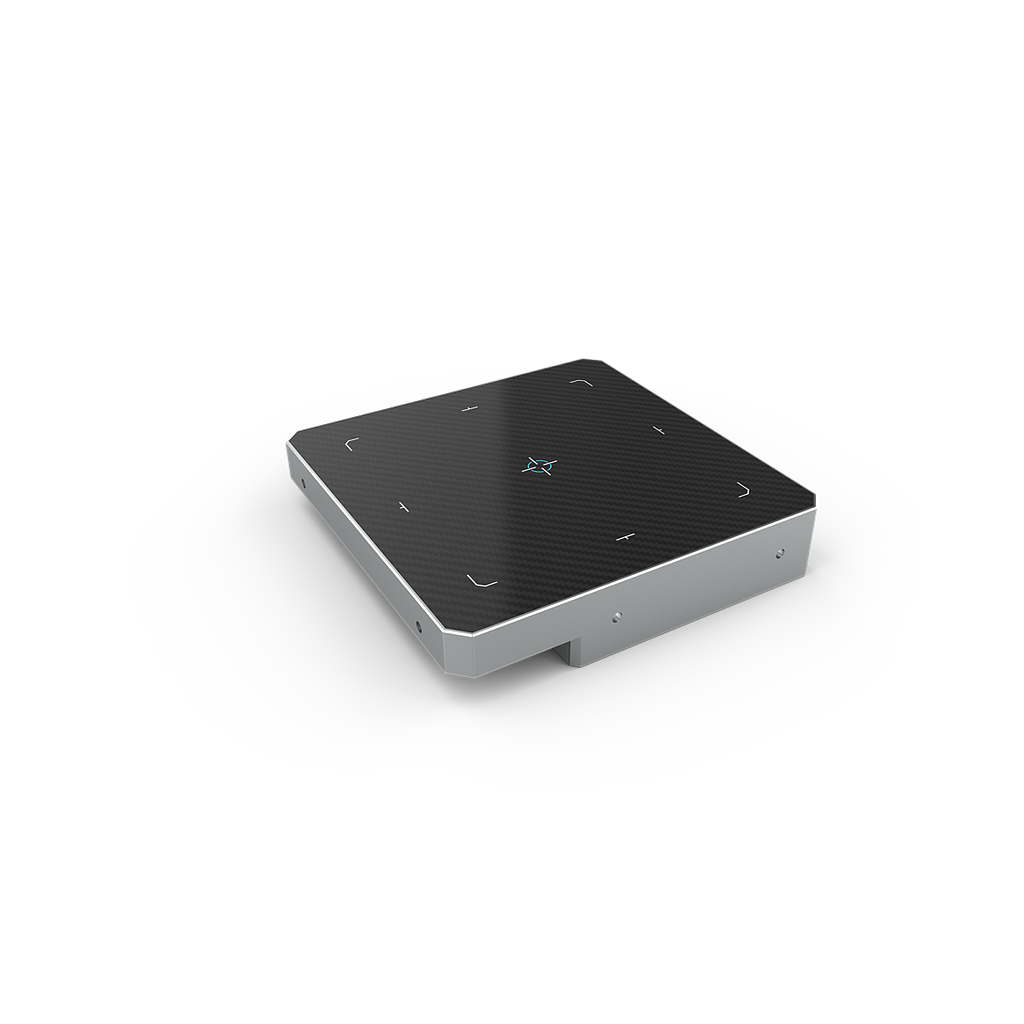

DT Detection Technology X-Panel 1313z FDI-CSV Flat panel detector (IGZO-TFT, 1536 x 1536, 84 μm)

Technology:

Sensor: IGZO-TFT

Scintillator: CsI

Active area: 129 x 129 mm

Pixel matrix: 1536 x 1536

Pixel pitch: 84 μm

ADC: 16 bits

Interface:

Data interface: 2.5 G Ethernet

Max frame rate: 40 fps (1×1)

Mechanics:

Dimensions (H x W x D): 176 x 176 x 35 mm

Weight: 1.4 kg

Environmental:

Temperature: 10~35°C (operating); -10~50°C (storage)

Humidity: 30~70% RH (non-condensing)

IP rating: IPX0

Power:

Dissipation: 13 W

Applications: SMT, battery inspection
