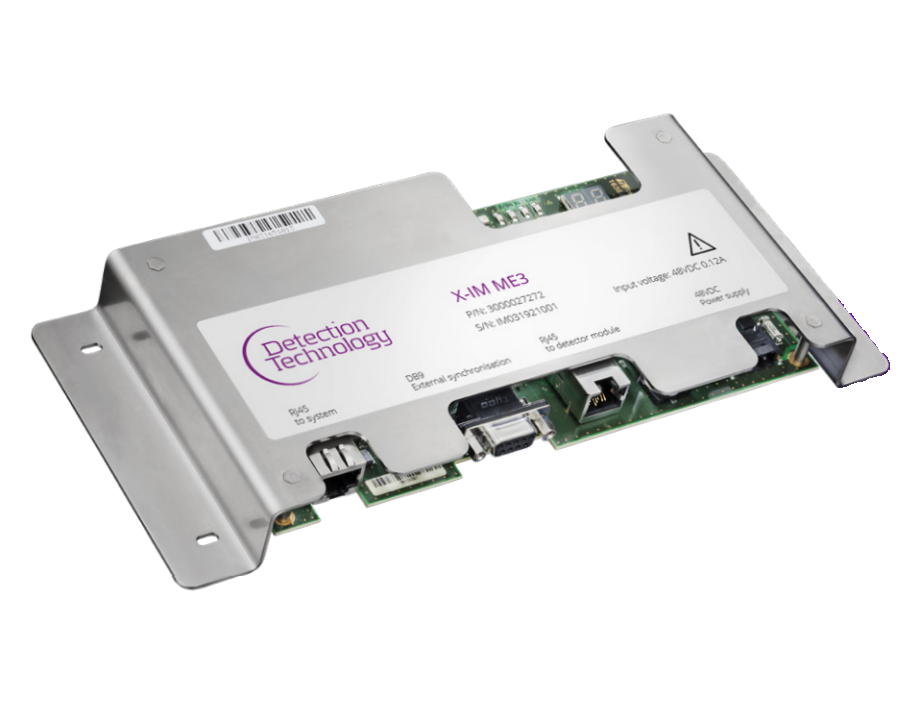

DT Detection Technology X-IM ME3 X-Card ME3 compatible control unit

Gigabit Ethernet link : Up to 800 Mbps

Data transfer standard : GigE vision

Communication port : RJ-45

Maximum detector length : 3840 pixels / 3069 mm

Mechanical dimensions : 260 mm x 110 mm x 26.5 mm

Weight:  0.5 kg

External synchronization signal : Based on RS-422 standard – DB9 connector

Operational voltage and power : 48 VDC, 12W (max 15 W)

EMC compliance : EN 61326-1, EN 61000-4-2, EN 61000-4-3

RoHS compliance : Yes

Operational temperature and humidity : 0°C to +40°C, 5-95% RH non-condensing

Storage temperature : -20°C to +60°C
