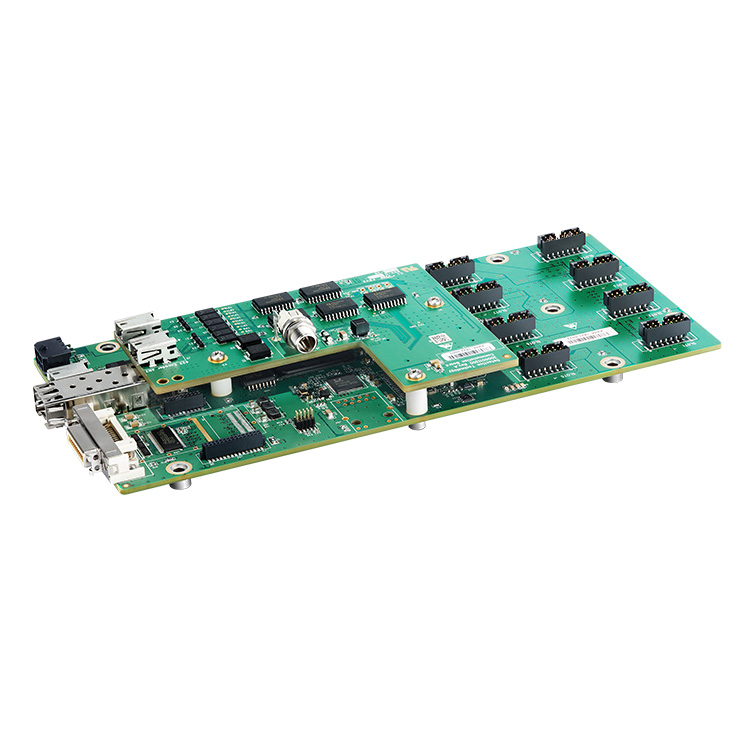

DT Detection Technology X-DCB KIT Off-the-shelf CT detector subsystem

Number of X-Link segments : 8 segments

Detector cards for each X-Link segment Max : 10 pcs

Maximum number of detector cards:  Max 80 pcs

Minimum view time : 350 us

Maximum throughput : 1.6 Gbps

Maximum pixel quantity : 40960

Supported data interface : Camera Link

Other interfaces : ABZ encoder, Command, Power input

Voltage input : +24 V

Power consumption : 5.2 W

G-force : 20 G

Mechanical dimensions (WxLxH):  100 mm x 215 mm x 35mm

Weight : 290 g

Operating temperature : 0 °C—+50 °C

Operating humidity : 5 %—85 % RH (non-condensing)

Storage temperature : -40 °C—+60 °C

Storage humidity:  5 %—95 % RH (non-condensing)
