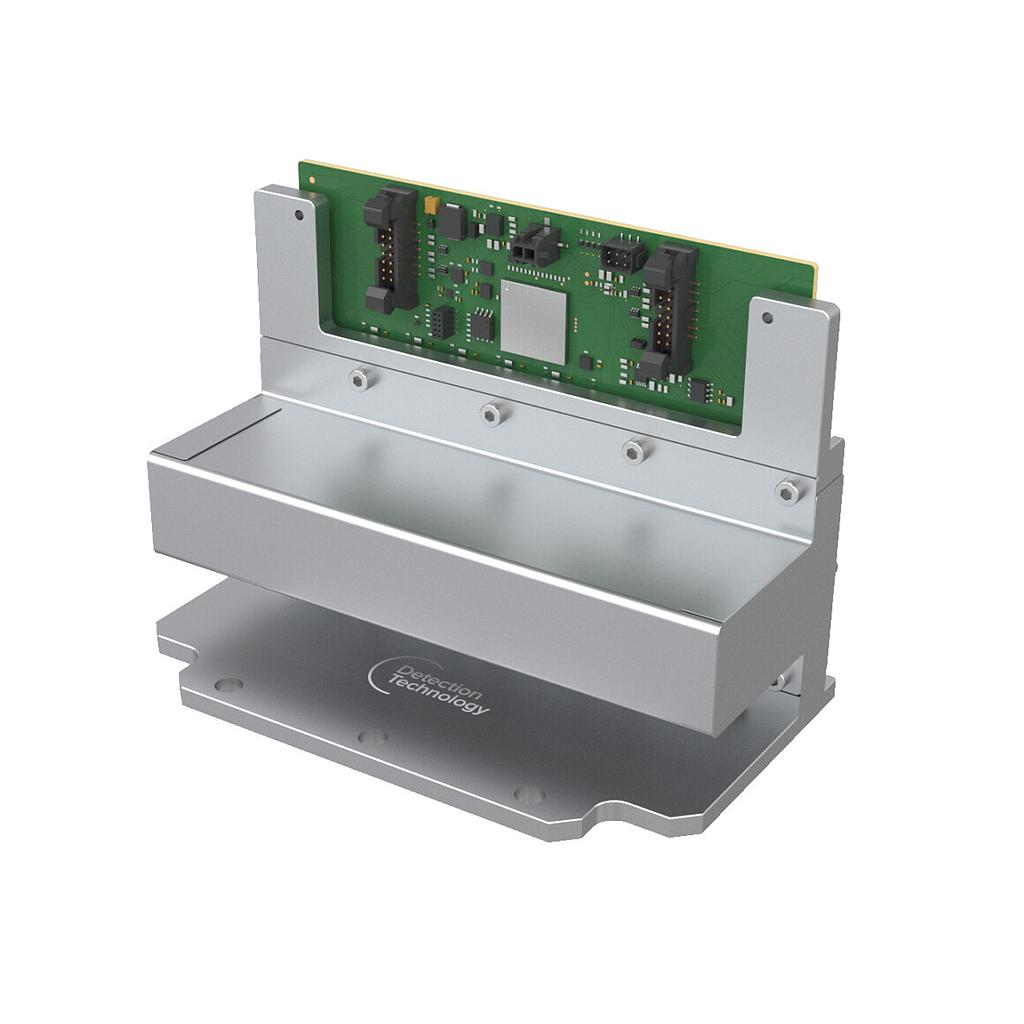

DT Detection Technology X-Cargo 8R23 Multirow detector (2.3mm)

Pixel pitch (mm): 2.3

Number of rows per DM (pcs): 8

Number of read-out channels per DM (pcs): 512

Max DM quantity : 80

Max number of read-out channels for the system @ max 80 DMs (pcs): 40960

DM active area length (X) (mm) : 147.2

DM active area width (Z) (mm): 20.1

Pixel absorption length (Y) (mm): 40

Max object scanning speed (km/h): 70 / 36

Max scanning speed : 1,000 lines/sec (1 kHz pulse rate)

Min integration time (per pulse) : 100 us

Scintillator material : Cesium Iodide, CsI (Tl)

Min. range (pC/pixel): 0.75

Max. range (pC/pixel): 95.25

Range step (pC/pixel): 0.75

Number of sensitivity setting steps (pcs): 127

A/D resolution (bits): 20

Data interface options : Gigabit Ethernet / 10GbE Optical Fiber
