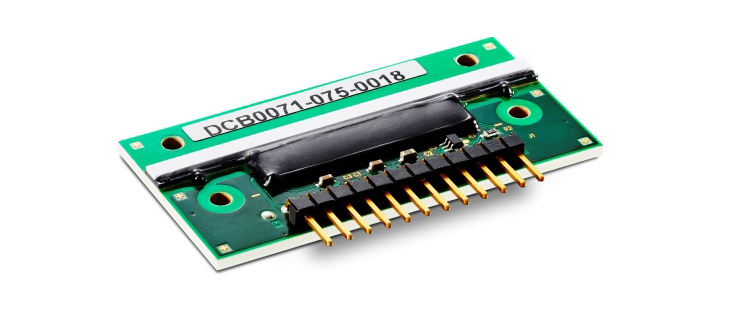

DT Detection Technology X-Card2 0.8-64 X-ray detector boards (30–160 kVp, 160–600 kVp, 600 kVp ~15 MeV)

X-ray energy range : 30–160 kVp, 160–600 kVp or 600 kVp to 15 MeV

Scintillator : GOS screen, Ceramic GOS or CdWO4

X-Card2 length: 51.3 +/- 0.05 mm

X-Card2 width:  25.0 +/- 0.10 mm

X-Card2 thickness:  1.6 +/- 0.10 mm

Active area length: 51.18 mm

Number of pixels : 64

Pixel pitch : 0.80 mm

Pixel height :  0.80 mm

Pixel width:  0.72 mm

Minimum integration time : 0.14 ms

Maximum integration time:  2s

Maximum read out rate : 1 MHz

Dynamic range : >16 000:1 depending on sensitivity settings

Linearity : > 99 %

ESD immunity : > 2K volts

Operational voltage:  +5 V DC

Radiation hardness : 10 MRad

Operational temperature : -5–+60 °C

Storage temperature : +10–+70 °C

Relative humidity (noncondensing) : < 85 %
