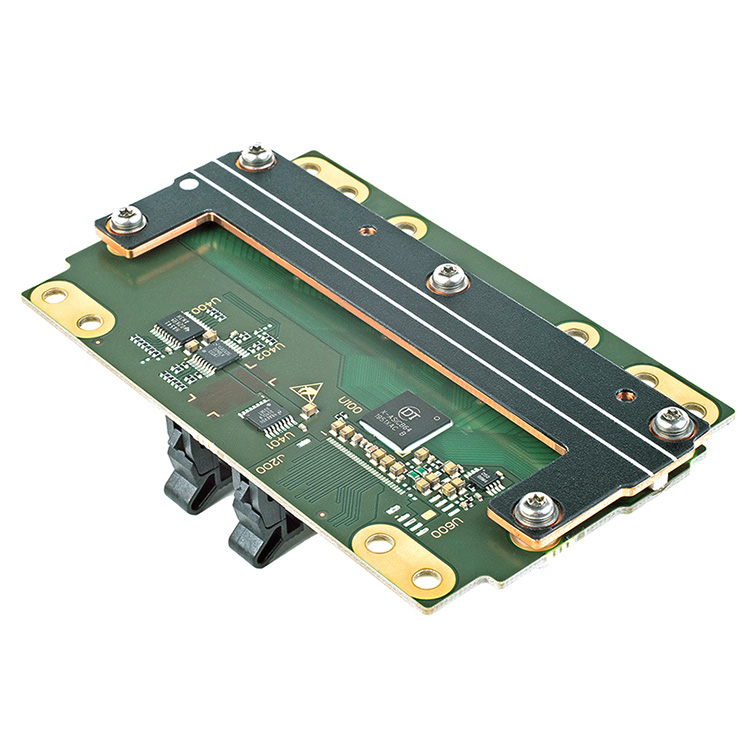

DT Detection Technology X-Card D021606414E Dual-energy X-ray detector board (13000:1 @ 2 pF, 20000:1 @ 10 pF)

X-ray sensor: DT proprietary dual-energy structure

Number of pixels:  LE 64 pixels, HE 64 pixels

Scintillator material : Ceramic GOS

Dynamic range:  13000:1 @ 2 pF, 20000:1 @ 10 pF

A/D resolution:  16 bits

Integration time range:  1.27 ms to 25 ms

Sensitivity range:  0.25 pF—31.75 pF, adjustable with 0.25pF steps

Pixel pitch:  1.575 mm

Pixel active area width : 1.2 mm

Pixel active area scanning direction:  2.0 mm

Scintillator alignment tolerance to reference hole : ±0.4 mm

X-ray response non-uniformity, pixel to pixel:  -15% to +10%

Dark offset non-uniformity, pixel to pixel:  -15% to +10%

X-ray response non-uniformity, card to card : -15% to +15%

Radiation hardness:  Lifetime dose max 100 kGy

Mechanical length:  101.6 mm

Mechanical width: 59.5 mm

Mechanical heigh:  26.5 mm

Weight:  62.5 g
