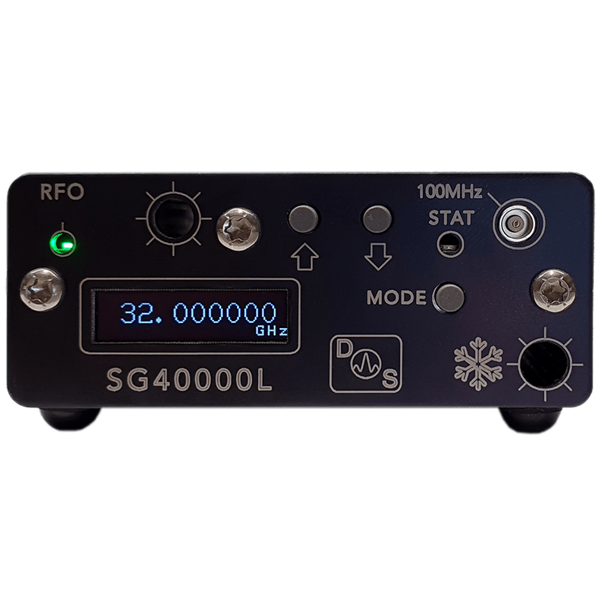

DS INSTRUMENTS SG40000L Compact Signal Generator (25 – 40GHz)

Output frequency range covering 25 – 40GHz

Power control (25 – 40Ghz calibrated): -10dBm to +15dBm (vernier and 0.5db steps)

Excellent phase noise: -82dBc at 35GHz at 10KHz offset

Sub-harmonic levels: < -12dBc typical

Extremely small frequency step size: 2Hz

Ultra-low-noise 100MHz VCXO locked to internal TCXO or external 10MHz reference

Internal precision high-frequency reference source (±280PPB 10MHz)

MCX input for 10MHz clock source

Compact powder-coated laser-etched enclosure

Precision 2.92mm output jack (3.5mm compatible)
